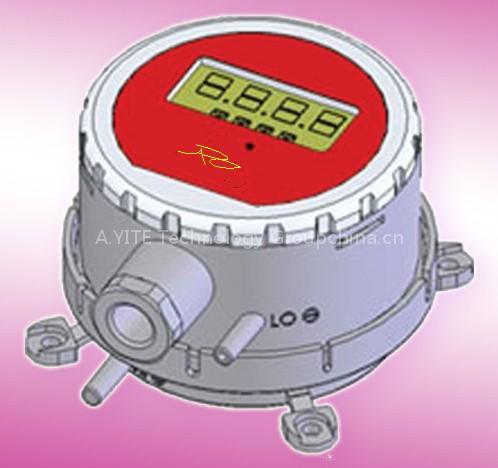

Air Differential Pressure Transmitter with LCD Screen

This Air Differential Pressure transmitter is produced with magnetic sensing technology, pressure ranges from 0~25Pa at up to 1250Pa. Available with Unidirectional and bidirectional pressure ranges, and air velocity, with LCD display screen. 1. Medium: Air and non-combustible gases, compatible gases 2. Pressure Range: 0- 25Pa (min.), 0-1250Pa(max.) 3.

Max Pressure: 7000Pa max. operation; 70KPa burst 4. Power Supply: 10-35 VDC (2-wire); 17-36 VDC or isolated 15-26 VAC (3-wire) 5. Output: 4-20mA (2-wire), 0-5V(3-wire);0-10V(3-wire) 6. Protect Grade: IP65 7. Visual Display(optional): 2-line, 4-digit LCD 8. Working Temperature: -20C ~ 70C
