Listing ID#10096483
ModelFTS-B-6000
CategoryOther Plastic & Rubber Machinery

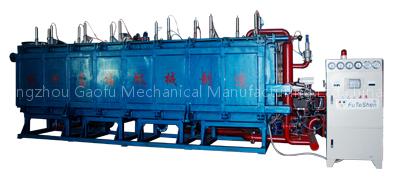

Air-Cooling Antomatic Block Forming Machine
Specifications
- Brand
- FUTESHEN
- Origin
- China (Mainland)
- Price Term
- FOB
Quick answer
Air-Cooling Antomatic Block Forming Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: FUTESHEN; Origin: China (Mainland); Price Term: FOB.
Product Description
| Item | FTS2000A | FTS3000A | FTS4000A | FTS6000A | FTS8000A | |
| Mould Cavity Size | 2040*1020*580(mm) | 3060*1240*630(mm) | 4080*1024*630(mm) | 6080*1240*630(mm) | 8100*1240*630(mm) | |
| Block Size | 2000*1000*560(mm) | 3000*1200*600(mm) | 4000*1200*600(mm) | 6000*1200*600(mm) | 8000*1200*600(mm) | |
| Steam | Entry | DN80 | DN80 | DN80 | DN80 | DN80 |
| Consumption | 18-25kg/cycle | 25-35kg/cycle | 40-50kg/cycle | 55-65kg/cycle | 75-95kg/cycle | |
| Pressure | 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa | |
| Compressed Air | Entry | DN40 | DN40 | DN40 | DN40 | DN40 |
| Consumption | 1-1.2m3/cycle | 1.2-1.6m3/cycle | 1.6-2m3/cycle | 2-2.2m3/cycle | 2.2m3/cycle | |
| Pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | |
| Drainage | Steam vent | DN100 | DN100 | DN100 | DN100 | DN100 |
| Throughput | 10min/cycle | 12min/cycle | 15min/cycle | 15min/cycle | 15min/cycle | |
| Connected Load | 7KW | 8KW | 9.5KW | 9.5KW | 9.5KW | |
| Overall Dimension | 4000*2000*2100(mm) | 5100*2300*2100(mm) | 6100*2300*2200(mm) | 8200*2500*3100(mm) | 11500*2600*3300(mm) | |
| Weight | 4500kg | 6200kg | 9000kg | 10000kg | 14000kg | |
