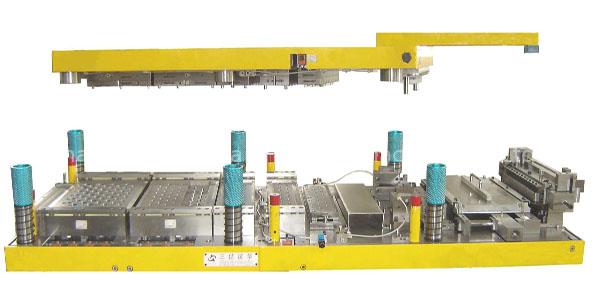

Air Conditioner Progressive Punching Fin Die
Specifications
- Brand
- SANJIA YIHUA
- Origin
- Huangshan
- Price Term
- FOB
Quick answer
Air Conditioner Progressive Punching Fin Die is a Moulds product. Key specs — Brand: SANJIA YIHUA; Origin: Huangshan; Price Term: FOB.
Product Description
Using field:punching fins for heat exchanger of air-conditioner
Basic processing stages of punching die:
draw-pierce&burring-reflare-edge trim-pilot-row slit-feeding-cut off
Special stages under customers' requirements:
louver,surface slit,notching,heater holes,sin-wave,etc.
Matching equipment:fin press
Fin hole diameter range:5-25.4mm
Fin die rows range:4-60rows
No. of progressions and distance between rows and hoels in row:according to customers' requirements
Thickness range of material(aluminium):0.09-0.3mm
Collar height range:1.2-10mm
Type of evaporative oil:AF-2A,RF-530,Henkel Magnus L67,etc
