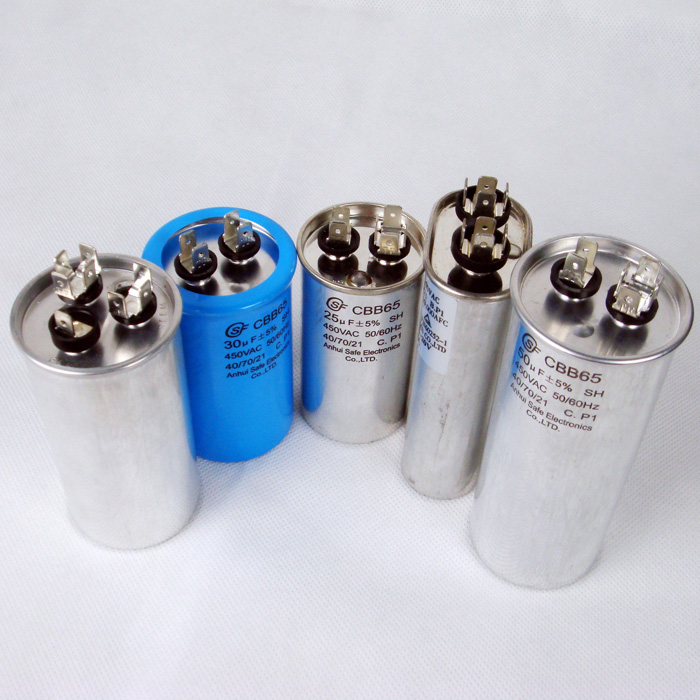

Air Conditioner Capacitor
Specifications
- Origin
- China(mainland)
- Price Term
- EX-Work
- Payment Term
- T/T
Air Conditioner Capacitor is a Passive Components product. Key specs — Origin: China(mainland); Price Term: EX-Work; Payment Term: T/T.
Product Description
Characteristics: 1. High insulation resistance 2. Stable reliability 3. Explosion proof structure 4. Low dissipation factor 5. Excellent self-healing property Product Description: The capacitor takes heavy-edge metalized Al/Zn PP film or web-like safety film as dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases.
Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.
Application: Applied to the starting and better working of sing-phase motor in 50Hz(60Hz) frequency AC power system. Technical features: Rated Voltage: 100~1000VAC Rated Capacitance: 1~120uf Rated Frequency: 50Hz/60Hz Climate type: 40/70/21, 40/85/21 Capacitance tolerance: +-5% Loss Tangent:
