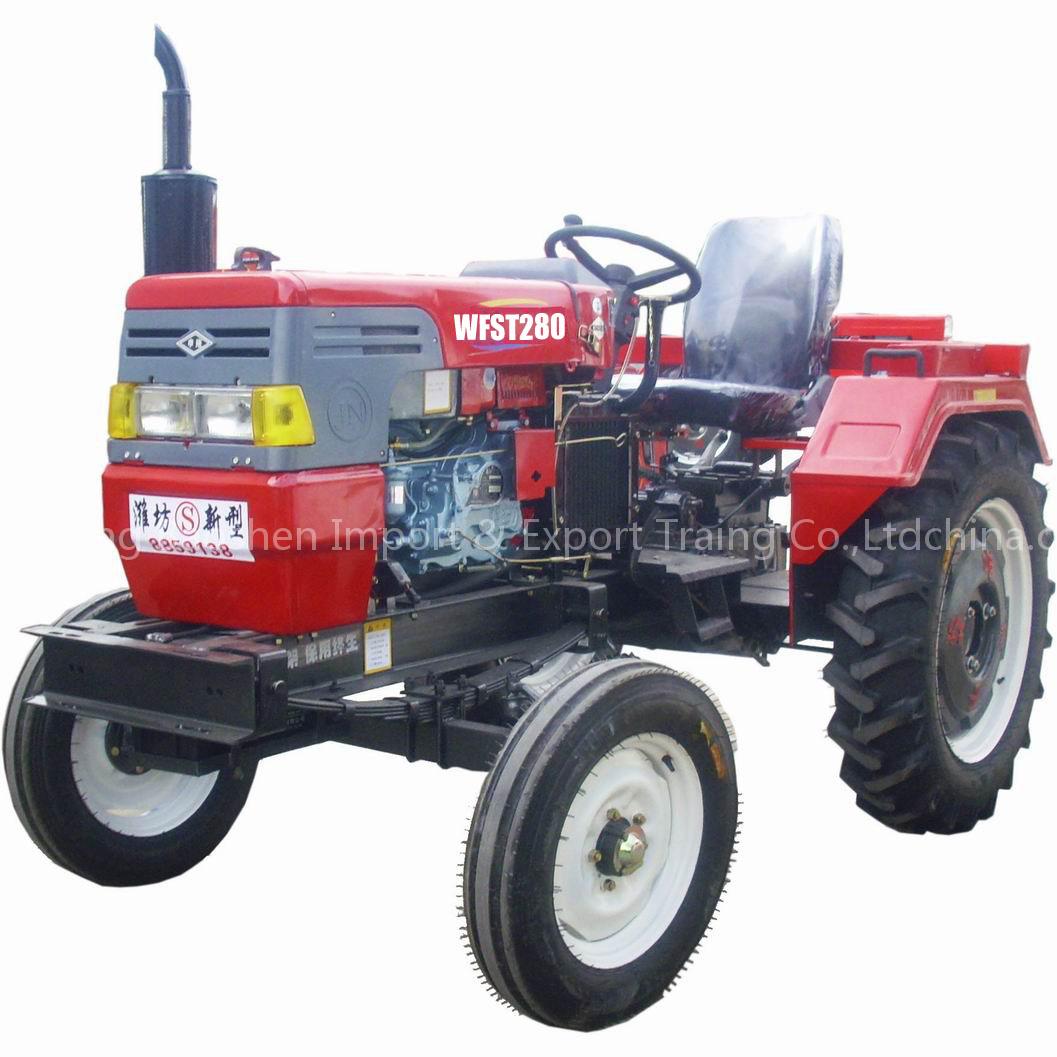

Agriculture Tractor
Specifications
- Origin
- Weifang City,Shandong Province,China
Agriculture Tractor is a Other Farm Machines product. Key specs — Origin: Weifang City,Shandong Province,China.
Product Description
Power2 Drive,28hp
Type4×2 Wheel Type, For Dry Field Farming
Rated Traction (N)4325
Dimensions(mm)
Overall SizeLength2900,Width1240,Height1470
Tread mm1400/1500
Front Tyre4.00-12, Rear Tyre7.5-16
Wheel BaseFront Wheel940
Rear Wheel1000
Min. Ground Base245/295/340
EngineModelLDKM160
Type: Diesel,One Cylinder,Horizontal Type,4-Stroke,Direct Injection,Water cooled
Rated Power
Rated Rev.(kw/min)19.2 Kw,2200 r/min
Steering Radius(m)2.8±0./2.9±0.2/3.0±0.2/3.2±0.2
Tractor Therotical Speed(km/h)
â… Shaft2.09/2.35/2.56/2.70,â…¡ Shaft 4.87/5.48/5.97/6.31
III Shaft6.57/7.37/8.07/8.52,â…£ Shaft7.78/8.72/9.55/10.09
â…¤ Shaft15.29/17.19/18.77/19.83
â…¥ Shaft24.34/27.35/29.88/31.56
Reverse5.04/5.66/6.19/6.54
Tractor Weight (kg)Structure Weight (kg)930
Working Weight (kg)955
Front Balance Weight (kg)7.5/15/31
Rear Balance Weight (kg)12.5/15/35
