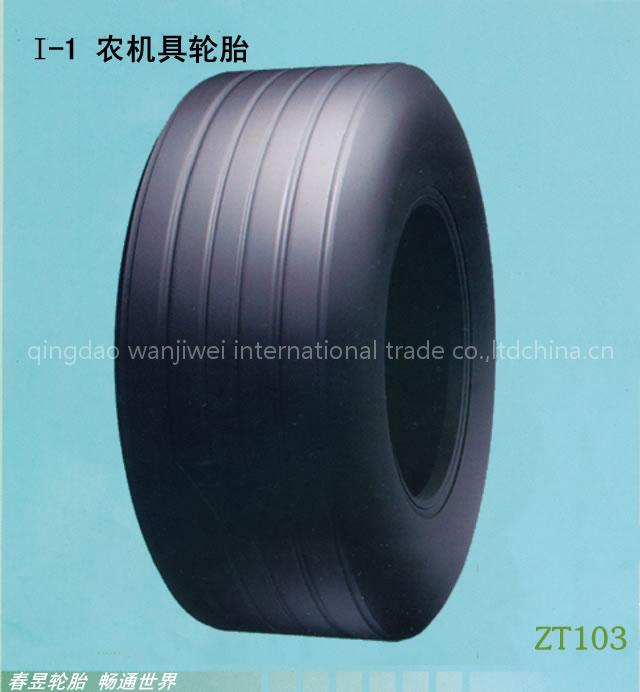

Agricultural tire
Specifications
- Origin
- shandong ,china
- Price Term
- FOB
Quick answer
Agricultural tire is a Other Plastic & Rubber Machinery product. Key specs — Origin: shandong ,china; Price Term: FOB.
Product Description
we can supply some kinds of agricultural tractor tire .the size is following :
Aagriculture Tractor Tyre size:
| size | ply | rim | width mm | diameter mm | max load | pressure | |
| (kg) | kg/cm2 | KPA | |||||
| 4.00-12 | 4 | 3.00D | 110 | 535 | 240 | 3.6 | 360 |
| 4.00-14 | 4 | 3.00D | 110 | 590 | 270 | 3.6 | 360 |
| 4.00-16 | 4 | 3.00D | 110 | 640 | 300 | 3.6 | 360 |
| 6 | 110 | 640 | 330 | 3.9 | 390 | ||
| 4.50-16 | 6 | 3.00D | 122 | 655 | 615 | 3.9 | 390 |
| 8 | 122 | 655 | 900 | 6 | 600 | ||
| 8 | 122 | 655 | 645 | 4.15 | 415 | ||
| 5.00-15 | 4 | 4J | 140 | 665 | 365 | 3 | 300 |
| 6 | 3.00D | 130 | 640 | 465 | 4.2 | 420 | |
| 5.50-16 | 6 | 4.00E | 150 | 710 | 510 | 3.7 | 370 |
| 10 | 150 | 685 | 1100 | 6 | 600 | ||
| 6.00-16 | 6 | 4.00E | 160 | 740 | 580 | 3.6 | 360 |
| 10 | 160 | 740 | 1100 | 5 | 500 | ||
| 7.50-16 | 6 | 5.50F | 205 | 810 | 760 | 3 | 300 |
| 7.50-20 | 6 | 5.50F | 205 | 910 | 890 | 3 | 300 |
| 10.0/75-15.3 | 8 | 9 | 264 | 760 | 1330 | 3.1 | 310 |
| 10 | 264 | 760 | 1525 | 3.9 | 390 | ||
| 6.00-12 | 4 | 4.50E | 165 | 640 | 335 | 1.8 | 80 |
| 6 | 165 | 640 | 405 | 2.5 | 250 | ||
| 6.50-16 | 6 | 5.00F | 180 | 765 | 565 | 2.5 | 250 |
| 10 | 4.50E | 158 | 710 | 1000 | 5 | 500 | |
| 7.50-16 | 6 | 5.50F | 205 | 810 | 695 | 2.6 | 260 |
| 7.50-20 | 6 | 5.50F | 205 | 910 | 760 | 2.1 | 210 |
| 8.30-20 | 6 | W7 | 210 | 895 | 705 | 2.31 | 230 |
| 6.50-20 | W8 | 240 | 1050 | 935 | 2.1 | 210 | |
| 240 | 1050 | 935 | 2.1 | 210 | |||
| 9.50-24 | 6 | W8 | 240 | 1150 | 895 | 2 | 200 |
| 11.2-24 | 6 | W10 | 285 | 1105 | 1055 | 1.8 | 180 |
| 8 | 285 | 1105 | 1055 | 1.8 | 180 | ||
| 12.4-28 | 6 | W11 | 315 | 1260 | 1255 | 1.6 | 160 |
| 15-24 | 10 | DW14 | 410 | 1330 | 2800 | 2.8 | 280 |
| 8.30-24 | 8 | W7 | 210 | 995 | 1135 | 2.7 | 270 |
| 11.20-28 | 6 | W10 | 285 | 1205 | 1115 | 1.8 | 180 |
| 12.4-26 | 6 | W11 | 315 | 1265 | 1240 | 1.6 | 160 |
| 16/70-20 | 10 | 14 | 418 | 1075 | 3015 | 2.5 | 250 |
| 13.6-38-10PR | W12 | 345 | 1565 | 2215 | 2.5 | 250 | |
| 11.2-20 | W10 | 295 | 995 | 785 | 1.2 | 120 | |
| 14.9-24-10PR | W13 | 378 | 1265 | 1990 | 2.3 | 230 | |
| 16.9-34-8PR | W15L | 430 | 1585 | 2380 | 1.7 | 170 | |
| 18.4-30-10PR | W16L | 467 | 1550 | 2815 | 1.8 | 180 | |
| 19.5L-24-8PR | W17 | 495 | 1345 | 1900 | 1.4 | 140 | |
| 16.9-28-6PR | W15L | 430 | 1435 | 1840 | 1.3 | 130 | |
| 16.9-28-10PR | W15L | 430 | 1435 | 2380 | 2 | 200 | |
