Agitator

Delivery Time:1~3 Month
Certification:IADC；ISO9001

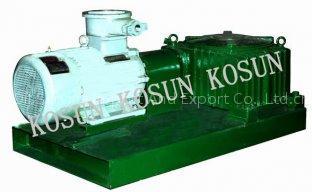

Be composed of explosion-proof motor, speed reducer, motor base & vane. The motor &reducer, reducer & impeller shaft is connected by rigid coupling. The impeller is welded by four vanes. The impellers can make the fluid form a vortex motion to enforce the stirring effect. The plate between blades can prevent solids particles in mud from depositing around the lower blades after stopping the machine. This can reduce the friction force of these sediments to the blades when start the machine, protecting the motor from overload. The angle between impeller vanes and the running direction of liquid is 45, which brings a radial flow and axial flow. Thus, it forms a certain circulation flow to make the solid particles in the mud mix and suspend in the fluid completely. Double-layers vanes construction can work effectively in heavy polymer mud with a high density and deeper mud pit. This can overcome the viscosity and viscous force with a wider mixing area and higher mixing efficiency.

Parameter: Model:	Power (KW)	Lmpeller Speed (r/min)	Weight (Kg)	Dimension (L*W*H) (mm)
WNJ-5.5	5.5	70	310	1020*600*596
WNJ-7.5	7.5	70	350	1060*600*604
WNJ-11	11	70	490	1200*640*673
WNJ-15	15	70	580	1290*710*683
WNJ-22	22	70	900	1582*838*755

The mud gun forms a high or low pressure jet flow with water supply from mud pump or sand pump to agitate the mud with a wallop, which can agitate areas that mechanical agitator cannot reach. It can gain a better mixing and solids suspension effect if combined with mechanical agitators. Based on flow principal, four and three nozzles will be arranged around and one vertical nozzle.
