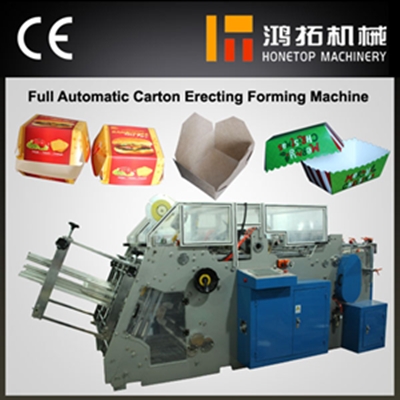

Advanced automatic carton box making machine
Specifications
- Brand
- HONETOP
- Origin
- China
- MOQ
- 1
- Packaging
- standard exporting packing
- Price Term
- FOB
- Payment Term
- T/T
- Supply Ability
- 10
- Delivery Time
- 35
- Loading Ports
- Ningbo,China
Advanced automatic carton box making machine is a Packaging Machines product. Key specs — Brand: HONETOP; Origin: China; MOQ: 1; Packaging: standard exporting packing.
Product Description
1.Application:
The carton box making machine can be used in different fast food industries like KFC, McDonald's, Burger King, etc.
It can make disposable snack box, hamburger box, chips box, etc.
The samples box made by Small paper box making machines
Machine Productivity
One block paper box(4 corner box without lid) max 180pcs/min
Fries box max 150pcs/min
Hot-dog box/burger box max 120 pcs/min
Food pail max 100pcs/min
Note: the output quantity metioned above is under normal conditions .Actual output may very on different box shape , quality of material , and its substance.
2. Technical specifications:
Produce speed
60—160pcs/min (different paper box shapes, the speed is different )
Raw material
200—600gsm card board /ivory paper/ corrugated paper thickness :1.5mm
Carton size
Box length: L 100-450mm and angle: 5° -40°
Box width :B 100-580mm Edge height H 15-200m
Packing size
3600*1400*1700 mm
Total power
380v,50hz, 4.5kw
Machine size
2950*1320*1500mm
Compressed air consumption about 0.4m³/min
