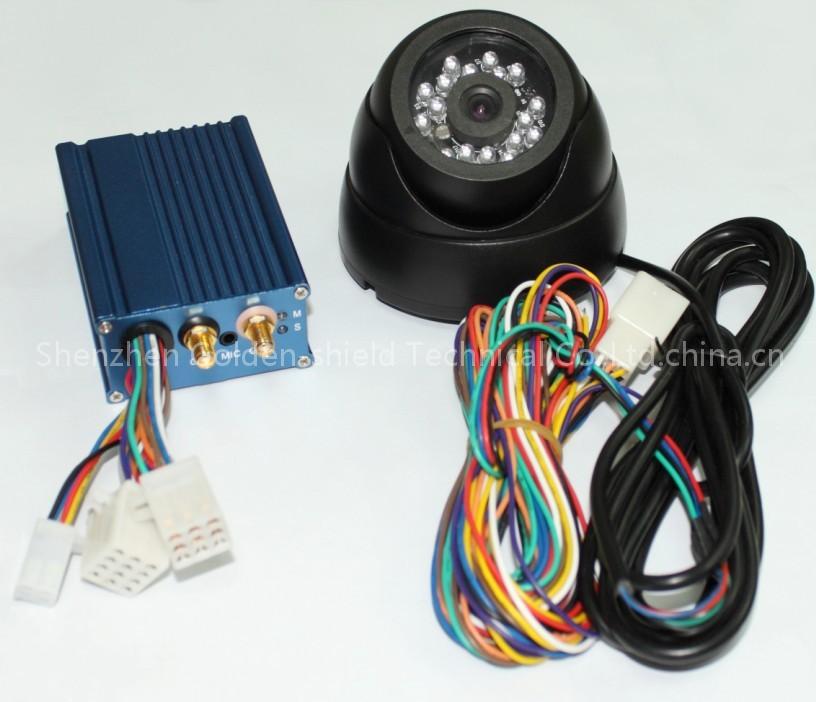

Advanced GPS Car/Vehicle Tracker GST501

Brief Introduction
GST501 which comes in a compact design is a powerful real time fleet management and vehicle tracking system using high sensitivity GPS and wireless GSM/GPRS communication. This self-contained and autonomous tracking device including GSM module, GPS receiver, Li-ion battery and Multi analog input is able to be used as observing the location of vehicle ,detecting temperature ,detecting fuel costing, watching cockpit remotely ,detecting RFID ,voice communication as well as data displaying on mobile data terminal. (It has 2 external UART port to be interface with various device such as mobile data terminal, CCD camera, RFID reader and so on.)

Software Features
1),SMS mode/GPRS mode/SMS+GPRS mode
2),Position request via SMS or GPRS
3),Data logging capacity: up to max 1,44,000 point
4),Store in GSM blind area and forward when GSM signal re-establish
5),Mileage report
6),Upload/download settings, locations, and update firmware via GPRS
7),Configurable GEO-fencing
8),Configurable 2 analog input for status detection
9),Configurable 5 digital input for status detection
10),Configurable 5 digital output for remote control of vehicle
11),Configurable 2 UART port for status detection

Hardware Features
1),GSM/GPRS core
nbsp; Simcom:SIM300D:900/1800/1900MHz
nbsp; Simcom:SIM340D:850/900/1800/1900MHz
nbsp; GSM/GPRS services: Data, SMS/GPRS class B, class 10,TCP UDP,IP
2),Physical characteristics
nbsp; Dimensions(L*W*H): 104*73*29.8mm
nbsp; Weight:approx:160g(including build-in battery)
3),Temperature range
nbsp; Operation:-20 Celsius degree to +80 Celsius degree
4),Power sources
nbsp; Input voltage:10~32 Volt DC regulated/Max 2A
nbsp; Rechargeable Li-ion battery 1800mAh
5),Antenna
nbsp; External GSM/GPRS antenna
nbsp; GPS antenna
nbsp; Indication:2 LED indicator for GSM/GPRS and GPS status
nbsp

More details,please contact us for corresponding manual.
