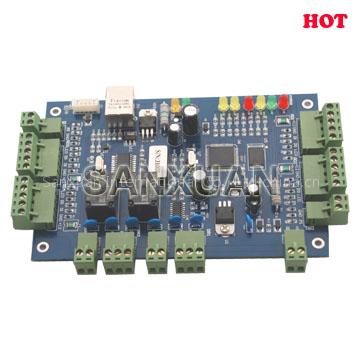

Access Controller

Descriptions:

Control 2 door, in and out door control, or get in control and out by push button

Collocations: PCB board, power supply box (optional including power power line), serial port communication line, software, manual, key(2pcs), carton

Function Introduction

Conventional Function: offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.

Professional function: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.

all-in-one-card management system: nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.

Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm

Features:

With Uninterruptible Power Supply interface

Support opening door button

Anti-pass back Function

Optional remote open button

Multi-card open door function

Open long time at specified time function

Electronic map

Urgency locking

First card unlocking

Unlock based on internal and external validation

Keypad (card+passwor, supper password)

Storage capacity: 20,000 cards and 100,000 records Or 60,000 cards and 60,000records

Technical Specifications:

Dimensions of PCB: 160mm*106mm.

Packing: carton

Packing Size: 210*138*55mm

Dimensions of control box SAC-BOX (optional): 273mm*228mm*65mm.

Main-board voltage: 12VDC 4-7A.

Power consumption: ﹤100mA.

Power Consumption: Less than 100mA

Communication: TCP/IP

Input Format of Reader: Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)

Output: 1 relays output for controlling switch signal

Max. controller of networking: N*256PCS

Quantity of Readers: 4pcs, 2 in and 2 out

Door Controlled: 2

Door opening time extending setting: 1-600 seconds(adjustable)

Operating temperature: -40 ℃ to +70 ℃.

Operating humidity: 10-90% RH, not condensed.

Power interruption protection: High Speed Memory, Records never lose

Max Distance from Reader to Controller: 100m (suggestion distance 80m)

Max Distance between Controllers: TCP/IP: Depends on net coverage area
