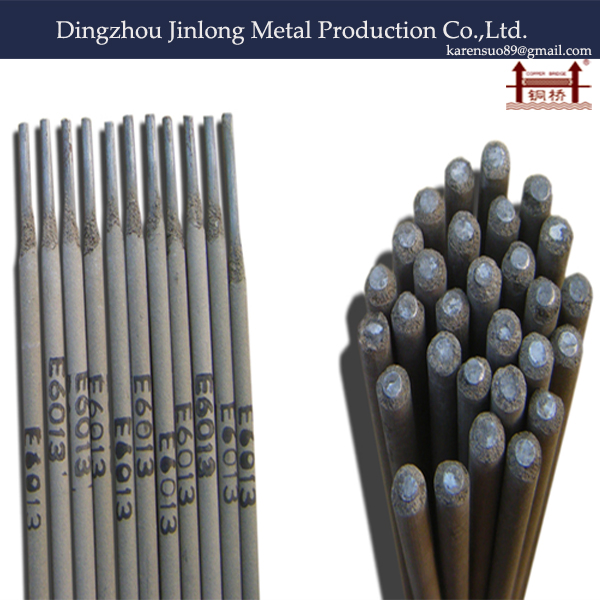

AWS E 6013 /flux coated electrode

About us

We are professional factory of welding electrodes,welding wires and metal products in china,established in 2004,our company has professional r&d persons and an experienced team.we will always put the customer first,and will try our best to make you satisfied.if you need,please feel free to contact us,we will respond promptly,welcome!

Feature Brand: Copper Bridge.

Certificate: SGS, BV,ISO9001-2008,ICQ,CE,SONCAP,COTECNA.

OEM: accepted.

Package: packaging can be changed according to your needs.

Sample: free

Advantages

Stable arc

Fewer spatters

Easy to restrike

Less smog

Good off slag,high deposition efficiency

Guaranteed

Best price offer

On-time delivery

Strict quality control

The most comprehensive and the most attentive service

Chemical Composition of Deposited Metal(%)

Chemical composition C Mn Si S P

Guarantee value ≤0.12 0.3～0.6 ≤0.35 ≤0.035 ≤0.040

Mechanical Properties of Deposited Metal

Test Item Rm(MPa) ReL(Mpa) A(%) KV2(J) KV2(J)

Guarantee value ≥420 ≥330 ≥17 -(normal temperature) -(0°C)

General result 460~540 ≥340 18~26 50~80 ≥47

Application

The welding electrode E6013 is widely used on both AC and DC in all positions and suitably for welding sheet metal structure made of low-carbon steel,such as ships,vehicles,building,and general machinery.

Packaging Size: 2.5MM X 300MM (Packing: 2.5kg/inner boxes 8boxes/cartons=20kg)

Size: 3.2MM X 350MM (Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)

Size: 4.0MM X 400MM (Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)
