After finishing the installation of floor, it goes to the upper structure. Even there is concrete, it doesnâ€™t affect other structure and the installation of cladding material. Along with BFS specialized floor supporting system, it achieves excellent acoustic and insulation performance.

Dead Loads Used for Design
Load Type		Sub Total(kpa)	Total Load
Sheet Roof	0.48mm Sheet	0.08
	OSB Cladding	0.06
	Accessories	0.06	0.20kpa
Tile Roof	Terra Cotta Tiles	0.56
	OSB Cladding	0.06
	Accessories	0.1
	Total		0.72kpa
Truss SelfWeight			0.06kN/m
Ceiling Weight	Plasterboard	0.1
	Accessories	0.06
	Total		0.16kpa
Floor SelfWeight	Floor Framing	0.12
	Floor Sheeting	0.15
	Accessories	0.22
	Total		0.49kpa
Wall SelfWeight	Plasterboard	2x0.13
	Wall Weight	0.08
	OSB Cladding	2x0.06
	Accessories	0.02
	Total		0.48kpa

Roof Snow Load
Location	Load
Intermediate Roof Snow Load	0.00kpa
Intermediate Roof Snow Load	0.85kpa
Eave Snow Load	0.00kpa
Eave Snow Load	1.20kpa

Basic Wind Speeds and Factors
Item	Load
Permissible Wind Speed	40 and 45m/s
Design Wind Pressure for 40m/s	0.864kpa
Design Wind Pressure for 45m/s	1.093kpa
External roof coefficients	-0.90, +0.40
Internal roof coefficients	+0.20, -0.30
External roof coefficients at eaves	-1.8
Internal roof coefficients at eaves	0.2
External wall coefficients	0.7
Internal wall coefficients	-0.3
External wall coefficients at corners	-1.3
Internal wall coefficients at corners	0.2

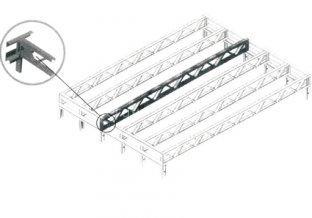

AVAILABLE FLOOR OPTIONS Web Joist Floor Systems
