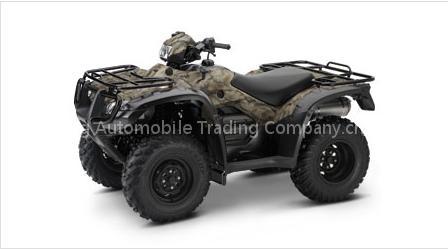

ATV Honda FourTrax Foreman Rubicon Camo

SPECIFICATION

ENGINE &nbsp

Engine Type 499cc liquid-cooled OHV dry-sump longitudinally mounted single-cylinder four-stroke&nbsp

Bore and Stroke 92.0mm x 75.0mm&nbsp

Induction 36.0mm constant velocity carburator&nbsp

Ignition CD with electronic advance&nbsp

Starter Electric with auxiliary recoil&nbsp

DRIVE TRAIN &nbsp

Clutch Automatic&nbsp

Transmission Fully automatic hydromechanical, continuously variable with electronic controls&nbsp

Driveline Direct front and rear drive-shafts with torque-sensing front differential&nbsp

CHASSIS / SUSPENSION / BRAKES &nbsp

Front Suspension Independent double-wishbone; 6.7-inch travel&nbsp

Rear Suspension Swingarm with dual shock absorbers; 6.7-inch travel&nbsp

Front Brakes 180.0mm front discs with single-piston calipers&nbsp

Rear Brake Sealed mechanical drum&nbsp

Front Tires 25 x 8-12&nbsp

Rear Tires 25 x 10-12

DIMENSIONS &nbsp

Length 83.0 inches&nbsp

Width 46.8 inches&nbsp

Height 46.4 inches&nbsp

Wheelbase 50.6 inches&nbsp

Seat Height 33.9 inches&nbsp

Ground Clearance 7.5 inches

owing Capacity 850 pounds&nbsp

Curb Weight 633 pounds&nbsp

Fuel Capacity 4.1 gallons, including 0.7-gallon reserve&nbsp

OTHER &nbsp

Note No operator under age 16. Honda recommends that all ATV riders take a training course and read their owners manual thoroughly.&nbsp

Available Colors Red, Camo&nbsp

Model ID TRX500FGA8&nbsp

Note For experienced riders 16 years of age and older.

FACTORY WARRANTY INFORMATION &nbsp

warranty; extended coverage available with a Honda Protection Plan.
