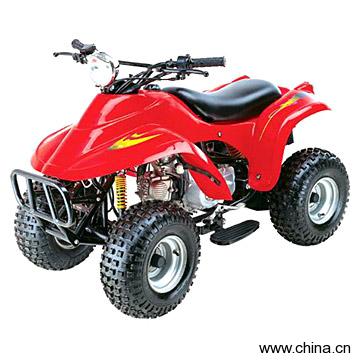

ATV (50ST-A) is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.: Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:Product Name: ATV (50ST-A)Place of Origin: ChinaEngine specifications:1) Engine model: 147FMB2) Engine style: single cylinder, air-cooled, 4-stroke3) Bore x stroke: 47 x 41.4mm4) Ignition: CDI5) Lubrication: pressure / splash6) Max. power: 3.0kW / 7,000rpm±150rpm7) Max. torque: 4.2N.m / 5,500rpm±150rpm8) Compression ratio: 8.8:19) Starting type: electric10) Max. speed: 45km/h11) Oil consumption: ≤365g/kWh12) Max. noise: 80dB13) Clutch: automatic / separated14) Transmission: 3 forward gears and 1 reverse gear (or 4 forward gears)Motorcycle specifications:1) Dimensions: 1,400 x 800 x 750mm2) Wheelbase: 950mm3) Dry weight: 95kg4) Gross Weight: 115kg5) Transmission: chain 6) Displacement: 49.5ml 7) Tire and rim: 16 x 8.0-7 (front and rear)8) Brake style: (front) drum / (rear) disc9) Absorber style: (front) independent hanging / (rear) middle absorber10) Oil capacity: 4.5L11) Climbing ability: ≥25°12) Max. load: 95kgOuter packing:Volume: 1,380 x 760 x 730mmConveyance:Qty/20' FCL: 36pcsQty/40' FCL: 75pcs
