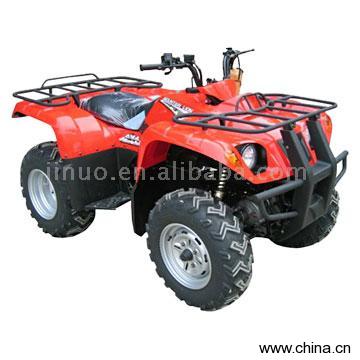

ATV (400cc, 4x4WD) is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:ATV-11-400 (4x4WD) Product Origin:China Brand Name: Price Terms: Payment Terms:T/T, L/C at sight Certification: Description:Product Name: ATV (400cc, 4x4WD)Model Number: ATV-11-400 (4x4WD)Place of Origin: ChinaSpecifications: 1) Engine type: one cylinder, 4-stroke 2) Cylinder arrangement: vertical3) Transmission system: shaft 4) Bore x stroke (mm): 83 x 71.6 5) Piston displacement (cc): 387.4 6) Compression ratio: 8.7:1 7) Maximum power (kW/r/min): 16.5 8) Maximum torque (N.m./rpm): 28 9) Starter system: electric and hand operated 10) Lubrication: press/splash 11) Overall length (mm): 2,100 12) Overall width (mm): 1,125 13) Overall height (mm): 1,175 14) Wheel base (mm): 1,240 15) Seat height (mm): 860 16) Min. turning radius (mm): 3,175 17) Ground clearance (mm): 210 18) Dry weight (kg): 270 19) Brake (front/rear): disc/drum 20) Tyre front: tubeless 21) Tyre rear: tubeless 22) Ignition type: CDI 23) Fuel tank capacity (L): 14 24) Climbing capacity: 30 degrees 25) Fuel consumption (L/100km): 4.5 26) Max. speed (km/h): 75 27) Battery: 12V/18Ah28) Cooling system: air 29) Carburetor: plugger vacuum 30) Clutch: wet centrifugal automatic
