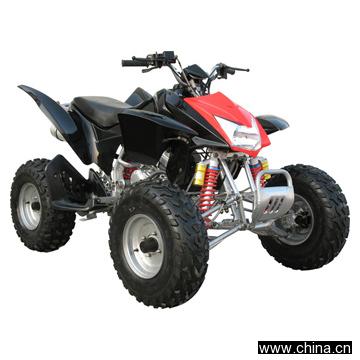

ATV (3250A) is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:ATV-3250A Product Origin:China Brand Name: Price Terms:FOB Payment Terms:T/T Certification: Description:Features: 1) Length (mm): 1,800 2) Width (mm): 1,1703) Height (mm): 1,1404) Fuel consumption (L/100km): 2.25) Starting type: electric6) Battery: 12V, 9Ah 7) Dry weight (kg): 1958) Front brake type: oil disc9) Rear brake type: oil disc 10) Transmission method: chain11) Front tire: 23 x 7-10 12) Rear tire: 22 x 10-10 13) Cylinder diameter x stroke (cm): 65.5 x 66.2 14) Type: 4-stroke, single cylinder with water-cooled, manual clutch15) Displacement (ml): 22316) Compression ratio: 10.5:117) Ignition mode: CDI18) Lubrication: press/splash19) Max. power (kW/rpm): 11/7,50020) Max. torque (N.m/rpm): 15.0/6,00021) Start mode: electric22) Clutch: wet centrifugal slice 23) Engine oil cap.
(L): 0.924) Carburetor type: PZ3025) Spark plug type: D87C26) Oil pump: inner-outer rotor type 27) Magneto: permanent magnetic28) Fuel tank cap. (L): 11.5 29) Fuel grade: octane no. RQ93 or higher30) Ground clearance: 14531) Wheelbase: 1,230
