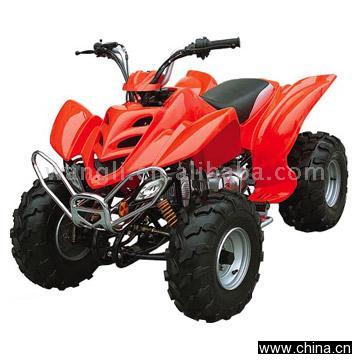

ATV (110cc Raptor) is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:WL-ATV110A (WL - ATV03) Product Origin:China Brand Name: Price Terms:FOB Ningbo / Shanghai Payment Terms:T/T, L/C at sight Certification: Description:Product Name: ATV (110cc Raptor)Model Number: WL-ATV110A (WL - ATV03)Place of Origin: ChinaFeatures:1) Engine type: 4-stroke, air-cooled with reverse gear2) Transmission system: shaft/chain drive, 4-speed, semi automatic 3) Bore x stroke: 52.4 x 49.5mm 4) Piston displacement: 107 5) Max. power (kW/rpm): 5.5/8,0006) Max. torque (N.m./rpm): 6.5/5,750 7) Starting method: electric 8) Min. turning radius: 2,400mm 9) Ground clearance: 100 10) Brake: front and rear by drum11) Parking brake: mechanical lock 12) Tires: a) Front: 19 x 7.00-8/2.9Psi b) Rear: 18 x 9.50-8/2.9Psi 13) Ignition type: C.D.I 14) Fuel tank capacity: 7.8L 15) Suspension: a) Front: leading arm b) Rear: mono shock swing arm 16) Battery: 12V, 7Ah 17) Max. load capacity: 95kg 18) Engine oil capacity: 0.95L19) Gear oil capacity: 0.12L 20) Auto lubrication, single cylinder 21) Wheelbase: 1,040mm 22) Carton dimensions: (L x W x H): 1,455 x 845 x 740mm23) Compression ratio: 9.1:124) Available color: red, blue, green, black, yellowOuter packing:N.W.: 130kgG.W.: 155kgConveyance: Qty/20' FCL: 30pcsQty/40' FCL: 66pcs Qty/40' HQ: 66pcs
