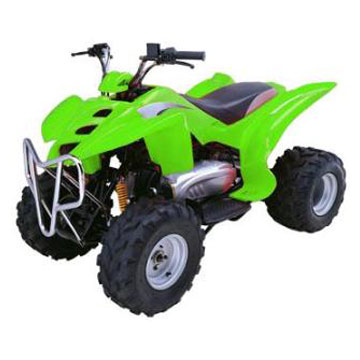

ATV is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:CGB150A-2 Product
Origin:China Brand
Name:CGB, Wepon, NFB
Price Terms:FOB, CIF, CNF
Payment Terms:
Certification: Description:
Features: 1) Engine: single cylinder, 4 stroke, air-cooled2) Displacement: 149.6ml3) Bore x stroke: 56.6 x 57.8mm 4) Max power: 7.2 / 7500kw/r/min5) Max torque: 9.0 / 5500r/min6) Minimum fuel comsumption: 354g/kw.h 7) Start mode: electrical 8) Transmission: chain / shaft 9) Brakes: drum / disc 10) Brake distance(m/30km): 711) Shift speed type: CVT12) Clutch mode: automatic clutch13) Dimensions (L x W x H): 1450 x 880 x 1000mm14) Minimum turning radius: 2000mm15) Seat height: 720mm16) Minmum ground clearance: 140mm17) Top speed: 60km/h18) Tyre dimensions: a) Front: AT19 x 7-8b) Rear: AT18 x 9.5-8
Packing:
Carton dimensions: 1480 x 830 x 790mmN.W.: 150kgG.W.: 160kg Conveyance: Qty/20'GP: 33pcs Qty/40'GP: 66pcs Qty/40'HQ: 66pcs
