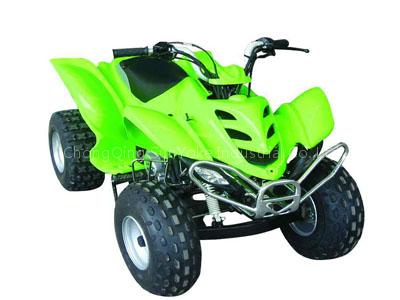

ATV is a ATVs product. Key specs — Brand: SunYoke; Origin: ChongQing; Price Term: FOB.
Product Description
Model: SY90ST-3/100ST-3/110ST-3
Main technical specifications: Maximum Torque: 5.5N.m/4500r/min /6.2N.m/5000r/min/7.0N.m/5000r/min
Dimension ((L×B×H)mm):1500*840**970 Clutch: wet multi-plate
Wheel base (mm): 1030 Lubrication: Pressure/splash
Track: 670mm Start: Electric start/Kick start
Min.Ground Clearance (mm):160 Ignition: C.D.I
Dry Weght: 140kg Max. Speed (km/h): ≥40km/h
Engine Type:Single-cylinder,air-cooled,four-stroke, Front Type Size and Air Pressure: 17×7-8
Engine model: IP47FMF/1P50FMG/1P52FMH Rear Type Size and Air Pressure: 18×9.5-8
Bore×Stroke: 47mm×49.5mm/50 mm *49.5 mm /52 mm *49.5 mm Exhaust Index: CO≤3.8%HC≤800ppm
Displacement: 86ml/97ml/107ml Start Performance: ≤15s
Maximum Power:4.4kw/7500r/min/4.5kw/7500r/min/5.2kw/7500r/min Brake Performance: ≤7m/30km/h
