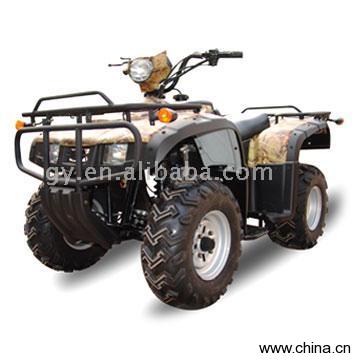

ATV is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:KN200ST Product Origin:China Brand Name: Price Terms: Payment Terms:L/C, T/T Certification: Description:Product Name: ATVModel Number: KN200STPlace of Origin: ChinaSpecifications: 1) Engine: a) Type: 4-stroke, single cylinder, water cooledb) Displacement: 197mlc) Bore x stroke: 63.5 x 62.2mmd) Compression: 9.2:1e) Max. power (kW/rpm): 10.0 / 7,500 f) Max. torque (N.m/rpm): 13.5 / 6,500g) Starting system: electric h) 5-gear manual clutch 2) Chassis: a) Brakes (front): drumb) Brakes (rear): drumc) Transmission: shaftd) Suspension/front: hydraulic pressure e) Suspension/rear: hydraulic pressure f) Tires/Front: AT23 x 10-10 g) Tires/Rear: AT22 X 10-10 3) Dimensions: a) L x W x H: 1,850 x 1,030 x 1,130mmb) Wheel base: 1,160mm c) Net weight: 230kg d) Max. load: 165kg e) Max. speed (km/h):
