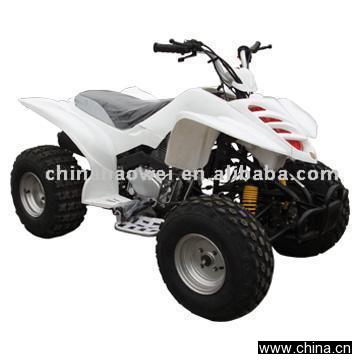

ATV is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:HW150S-9 Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:Product Name: ATV Model Number: HW150S-9Place of Origin: ChinaSpecifications: 1) Engine type: single cylinder, air-cooling, 4-stroke2) Power: 7.6kW/8,500rpm3) Max. torque: 9.5N.m/6,500rpm4) Min. ground clearance: 130mm5) Wheel base: 1,020mm6) Fuel tank capacity: 4L7) Transmission mode: chain8) Start mode: electric9) Tires: a) Front wheels: 19 x 7-8b) Rear wheels: 18 x 9.50-810) Max. speed: ≥65km/h11) Break type (F/R): drum / disc12) Power source: 12V, 9Ah13) Height of seats: 770mm14) Dry weight: 145kg15) Load capacity: 145kg16) Climbing degree: ≥20°17) Front hanging: double arm-swing18) Rear hanging: integral 19) Cylinder size: 62 x 49.5mm20) Displacement: 149.5ml21) Transmission: 4-gear, with reverse gear, manual clutch22) Min. turning radius: 2,400mm23) Parking trig: mechanical lock24) Ignition mode: CDI25) Engine oil: 1.1L26) Max. number of riders: 127) Lubrication: press splash28) Compression proportion: 9.2:129) Gas cylinder number: 130) Product dimensions (L x W x H): 1,580 x 940 x 1,100mmOuter packing: Carton dimensions: 1,490 x 835 x 770mmConveyance: Qty/20' GP: 29 unitsQty/40' GP: 64 unitsQty/40' HQ: 66 units
