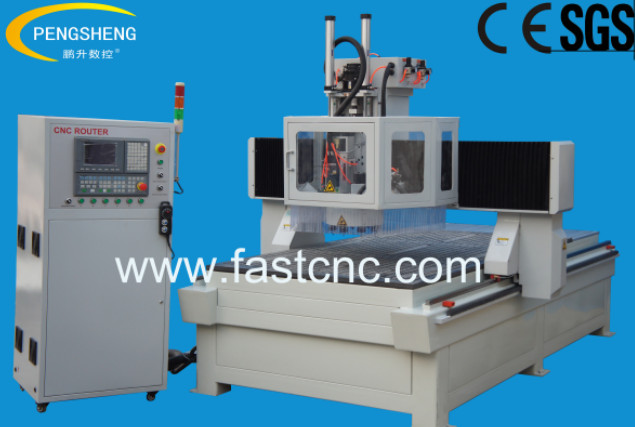

ATC CNC ROUTER 1325
Specifications
- Brand
- PENN
- Origin
- China
- Certifications
- CE,SGS
- MOQ
- 1piece
- Packaging
- plywood case
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C,Western Union
- Supply Ability
- 200pcs/month
- Delivery Time
- 10 working days
- Loading Ports
- Qingdao
- Guarantee
- 1 year
ATC CNC ROUTER 1325 is a Machinery Processing Services product. Key specs — Brand: PENN; Origin: China; Certifications: CE,SGS; MOQ: 1piece.
Product Description
Features: PC-1325ATCD is round type automatic tool changing system .The exchange time is only 8 seconds.X .Z axises adopt ballscrew, high precision, the structure is more stable. 2. Adopt Japan YASKAWA servo motor ,built-in encoder,It can stop automatically when graunch happens, so can avoid accidents .
Italy HSD air cooling spindle with too changing, high power , original cutters , high precision .long lifetime. 4.Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed. The side board of gantry adopt steel structure.
All adopt imported square oribit ,two line sliding track, heavy loading, stable working , high precision and long lifetime.Adopt imported ballscrew , high precision. Taiwan control system: The embedded numerical control system based on windows platform can upgrade the functions infinitively.
Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines.
Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (such as Mastercam,Typ3,UG,Artcam,Caxa). 7. 6 zones vaccum table, special wood door engraving area make the products more perfect.
Technical Parameter: Model PC-1325ATCD Table size 1360mm*2550mm Working area 1300mm*2500mm*220mm Max speed 60m/min Vacuum performance 420L/h The number of knife 10pcs/8pcs/6pcs(option) Command HPGL.
G code Repeatability 0.01mm Resolution 0.005mm Spindle speed 24000r/m Spindle power 9kw Spindle cooling style Air cooling / water cooling (option) Drive Motors Servo Motors and Drivers Max.
Power Consumption(Without spindle) 7kw Working Voltage AC380V/50/60Hz,3PH Machine weight 3000kg Applicable industry: Furniture industry, solid wood furniture, solid wood doors, decorative materials, cabinet doors, computer tables, panel furniture, office furniture, wood Speaker system, kitchen utensils, and other wooden furniture processing.
