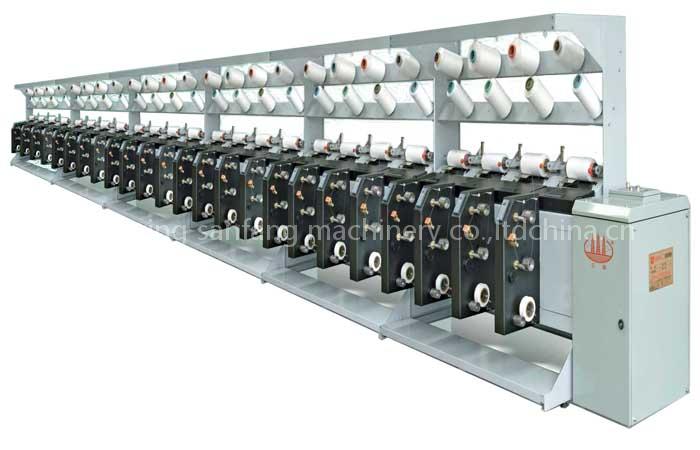

AGEN280 Air covering machine

:: AGEN280 Air Covering Yarn Machine ,the feature is each spindle can run independently, and can count the working yarn length.

:: We developed this machine according to the newest request of the current air-wrapped yarn,on the basis of reference to foteign sample machines,combined the features of Chinese textile is adopted the computer controlling separating the spindles and widely applied to air wrapping of spandex and nylon above node of formed air-wrapped yarn is beautiful and pitch is uniform. The combining strength is can meet the needs of all users.

Main technology parameters:

::Number of Spindles: 40(4spindles every group)

::Control Mode: computer control

::Broken Stop Type: automically for each spindle

::starting Mode: independently

::Thread speed: ≥350-400m/min

::Combine yarn roots: 2-3 roots

::Working Air pressure: 0.2-0.45 mega-pascal

::Draft times: 3-4 times

::Size of each group: L2200 x W985 x H1940mm
