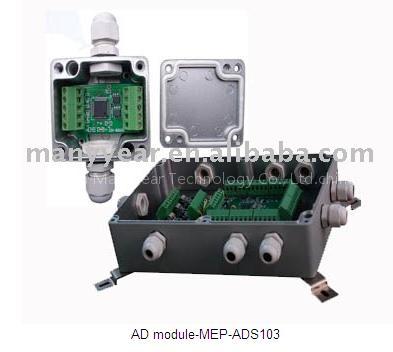

AD module-MEP-ADS103
Specifications
- Brand
- Manyyear
- Origin
- china
- Price Term
- FOB
AD module-MEP-ADS103 is a Electronics & Instrument Enclosures product. Key specs — Brand: Manyyear; Origin: china; Price Term: FOB.
Product Description
high precision, high stability. apply to static measuring and controlling system.
Main characteristic | |
1.voltage: 6.5V12V DC | |
2.power protect, voltage protect, peak protect. | |
3.Digital filter | |
4.digital demarcate: | |
5.characteristic parameter store | |
6.sample rate option | |
all item by series port | |
track range±2 | |
adjust range when power on±2±20 | |
10.linearity corrext point option(4~8) | |
11.temperature correct,adjust time can be option | |
12.short response time of measur | |
13.Prevent vibratility Intension option 0100 | |
14. update by series port | |
technology parameter | |
signal range | ±15mV |
2 MAX resolving power | ±1500k/±15mV(12.5Hz) |
3.Measur speed | 100Hz50Hz25Hz12.5Hz6.25Hz3.125Hz 2Hz1Hz(option) |
4.Filter mode | standard low-filter and FIR filter |
5.Nor-linearity | ±0.001F·S |
6.Temperature characteristic | <±5ppm/ |
7.Communication mode | semiduplex RS-485 |
8.baudrate | 1200bps2400 bps4800 bps9600 bps19200 bps38400 bps (option) |
9.Power supply | 6.5V12V DC |
10.Current | < 38 mA < 40mA Max |
temperature range | -40+70 |
12.Stock temperature range | ,-60+90 |
13.AD-S module dimension(mm) | Diameter: 32mm,thickness: 8mm |
