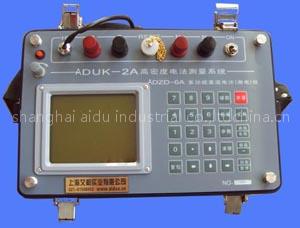

ADZD-6A traditional DC Resistivity Meter

Application: It is used for searching metal ore such as lead zinc ore; gold ore; manganese ore; copper ore; nickel ore; chrome ore; molybdenum ore; rare-earth ore; zinc ore; lead ore; iron ore; tin ore etc. &nbsp It can do multi-parameters measurement, such as apparent potential, polarizability and so on.

As to the depth, it can detect the ores or water 1000m below the earth surface, and all operation is very easy to study. We always provide professional training for you! Principe: By means of the related parameters of the apparent resistivity and induced polarization.

Specification: Receiver Measured voltage range: ±6V Measured voltage resolution: 0.01mV Measured voltage accuracy: ±1%±1LSB Input resistance: >50MΩ Apparent polarizability measurement accuracy: ±1%±1LSB Current measurement range: 5A Current measurement accuracy: ±1%±1LSB Notch filter to 50HZ is superior to 80dB SP compensation range: ±1V Transmitter Max power supply voltage: 900V Max power supply current: 5A Power supply pulse width: 1~59 sec.

Take-up to blank ratio is 1:1 Current: ≤60mA Others Operating temperature: -10℃~+50 ℃, 95%RH Storage temperature: -20℃~+60 ℃ Power supply: eight 1.5V batteries, size D Weight:
