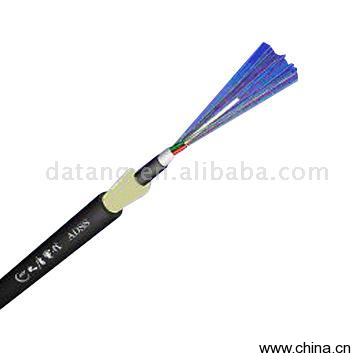

ADSS (All Dielectric Self-Supporting)

Model No.:ADSS Product Origin:China Brand Name:Datang Telecom Price Terms:FOB Payment Terms:L/C Certification: Description:Features:1) ADSS (All Dielectric Self-Supporting) optical cable has been mainly applied inelectric power system to provide a convenient way to establish communicationnetworks.

It is suitable for aerial installation when a communication line hastospan a river, a valley, a thunder area and other fields with special requirements2) With the opening of telecommunication service, ADSS optical cable not only satisfiesthe demands of communication of power system, but also leaves more capabilityto offer telecommunication service for other industries3) ADSS optical cable has excellent optical transmission properties, mechanicalproperties and environmental properties.

Being one of the most perfecttransmission media, it is extensively used in electric power communicationnetworks4) In the fields of intense electricity, signals transmitted in ADSS cable are notsubject to any disturbance5) Good communication quality will be kept all the time and no injures occur againstthe cable body.

So the transmission with ADSS cable is the most convenient wayfor telecommunication in the electric power system6) The primary characteristics of ADSS cable is summarized as follows:a) Anti-electromagnetism, strong endurability of electricity. Elements consistingofADSS cable are required to be non-metal.

The outer jacket material is ATtypepolyethylene when the space potential intensity at a point along the cableexceeds 12kVb) Good temperature and environmental properties, suitable for aerial the design of ADSS cable, environmental conditions such as wind, ice,temperature change, creep and so on should be taken into consideration.

Thena cable can possess good behaviors such as anti-impact, anti-vibration, anti-bending, prevention of thermal aging, flame retardant and so forthc) Low cost, convenient to install. It is possible to set up optical cables ontheoriginal pylon towers without any changed) Light weight, less load to tower.

The primary tensile strength member in ADSScable is polyamide yarn with high modulus and high strength, which makesthecable lighter in weight when comparing to a cable with steel wires as theprimarytensile strength members
