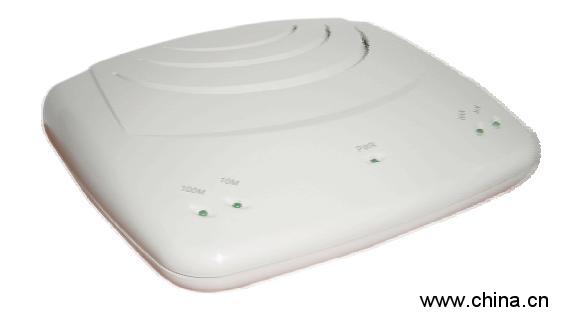

ADSL2 + With Router

M-7821r M-7821r+ Broadband Gateway ADSL/ADSL2+ Ethernet Bridge/Router Overview M-7821r and M-7821r+ are ADSL/ADSL2+ series of customer premise equipments That provide high-speed asymmetrical data transmission on a single twisted copper Pair. The DSL line interface supports various ADSL standards, up to ADSL2+ With M-7821r+.

At the DTE side these CPEs provide one 10/100 Ethernet Interface for easy connection to user's PC or LAN environment. M-7821r and M-7821r+ deliver broadband Internet access for enterprises, telecommuters, home, And remote office workers with high-speed data transfer requirements. Features Compliant with ITU-T G. 992.1 (G. Dmt), G. 992.2 (G. Lite), G.

992.3 (G. Dmt.

Bis ADSL2) and ANSI T1.413 Issue 2 M-7821r+ is additionally compliant with ITU-T G.992.5 (ADSL2+) and provides up to 24 Mbps Downstream rate Compatible and interoperable with major Central Office side ADSL DSLAM or Multi-service Access System One 10/100 Base-TX Ethernet port with Auto MDI/MDI-X for PC LAN connection RFC2684 1483 to bridge or route traffic over ATM over ADSL Support Networking protocols such as PPP, IP routing, NAPT, DHCP server relay client Can work either in Bridge or Router mode Support local and remote configuration and management through Web, Telnet or SNMP Simple firmware upgrade via TFTP, FTP or
