AC Motor Capacitors is a Capacitors product. Key specs — Origin: China (Mainland).
Product Description
Model No.:CBB61 Product
Origin:China Brand
Name:Shandian
Price Terms:FOB
Payment Terms:L/C
Certification: Description:

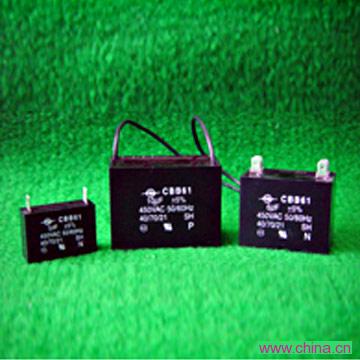

Product Name: AC Motor Capacitors
Model Number: CBB61
Place of Origin: China
Features:1) PBT plastic case, epoxy resin filled2) Box material is flame retardant3) Low loss, excellent temperature characteristics4) Excellent self-healing properties5) Long life and high reliability6) Suitable for starting and running motors
Specifications: 1) Operating temperature: -40-70°C2) Rated voltage: 250, 450V AC3) Capacitance range: 1-10μF4) Capacitance tolerance: J, K5) Dissipation factor: ≤0.0005 (100Hz)6) Voltage proof: a) T-T: 1.75URb) T-C: 2,000V AC7) Insulation resistance: ≥3,000MΩ
