Listing ID#10054575
CategoryCapacitors
Quick answer
AC Motor Capacitor is a Capacitors product. Key specs — Origin: China (Mainland).
Product Description
Model No.:MAC CBB61 Product
Origin:China Brand
Name:JIMSON
Price Terms:FOB
Payment Terms:T/T, L/C at sight
Certification:CQC, CB, CSA Description:

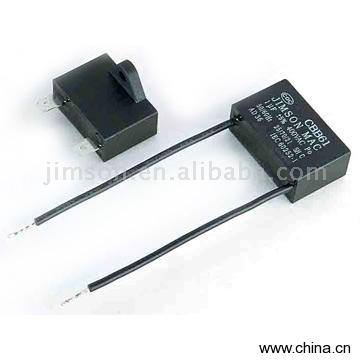

Product Name: AC Motor Capacitor
Model Number: MAC CBB61
Place of Origin: China
Features: 1) Dielectric: polypropylene/polyester film 2) Coating: vacuum evaporated metal leads: encapsulated in engineering plastic case sealed with epoxy resin meeting the requirement UL94V-0 3) Capacitance versus rated voltage: 1.0uf-13uf 250V AC, 400V AC, 500V AC4) Capacitance tolerance: M=±20% K=±10% J=±5% 5) Reference standard: GB/T 3667-1997, UL810 IEC60252-1 6) Climatic catalogue: 25/70/21 7) Insulation resistance: T-T C
