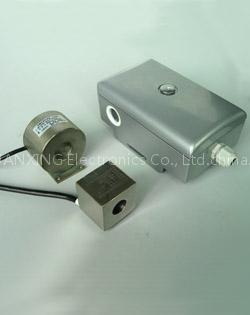

AC Leakage current transformers
Specifications
- Brand
- Yuanxing
- Origin
- China (Mainland)
AC Leakage current transformers is a Business Services product. Key specs — Brand: Yuanxing; Origin: China (Mainland).
Product Description
Features â— Center hole-through, easy installation,on the safe side. â— Metal casing,better capacity of resisting outside surroundings. â— High-sensitivity/accuracy,good linearity. â— Two series for selection: passive and active Applications â— Used in high voltage electric power equipment insulation monitoring plant, which is stalled in transformers station.Provide exact measure- ment for mA leakage current of high voltage power equipment, such as transformers sleeve, current transformers Specifications â— Frequency:50Hz â— Rated current:10mA,20mA,30mA â— Measuring range:0.5~700mA â— Output signal:mV/mA â— Amplitude error:±0.1% â— Phase error:±1' â— Environmental temperature:-30℃~+75℃ Influence on phase error by temperature change is
