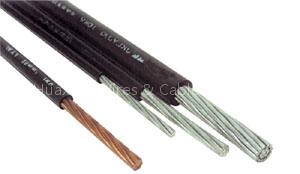

Name: ABC aerial bundle cable
SKU: JKLGYJ-10

ABC aerial bundle cable :

Aluminium stranded conductor(compacted or non- compacted), AAAC messenger core(or ACSR messenger core), XLPE(or HDPE) insulated, Twisted (or Parallel)power cable

The product is a new type of aerial cable for power transmitting, It is extensively used in overhead power transmission line, It improves the safety and reliance of electrified wire netting.

SPEC mm2	conductor structure		ã€€	ã€€	ã€€	Approx.	ã€€	ã€€
	Phase	Neutral(Bare ACSR)		insulation	insulation	Overall	Approx.	packing
	(Compacted AL)	Aluminium	Steel	material	Thickness	Diameter	Weight	Meters Per
	(No./mm)	(No./mm)	(No./mm)	ã€€	(mm)	(mm)	(kg/km)	Drum
1x16+1x16	7/1.72	6/1.72	1/1.72	XLPE	1.2	12.5	121.9	250-4000m
1x25+1x25	7/2.15	6/2.15	1/2.15		1.2	14.9	182.2	250-4000m
1x35+1x35	7/2.54	6/2.54	1/2.54		1.4	17.5	254.7	250-3500m
1x50+1x50	7/2.92	6/2.92	1/2.92		1.4	20.1	333.9	250-3000m
1x70+1x70	19/2.15	12/2.15	17/2.15		1.4	23.6	382.2	250-3000m
1x95+1x95	19/2.54	12/5.24	17/5.24		1.6	27.6	528.2	250-3000m
2x16+1x16	7/1.72	6/1.72	1/1.72	(HDPE)	1.2	14.2	187.6	250-4000m
2x25+1x25	7/2.15	6/2.15	1/2.15		1.2	16.7	273.8	250-3500m
2x35+1x35	7/2.54	6/2.54	1/2.54		1.4	19.7	386.9	250-3500m
2x50+1x50	7/2.92	6/2.92	1/2.92		1.4	22.5	506	250-3000m
2x70+1x70	19/2.15	12/2.15	7/2.15		1.4	26.1	617.2	250-3000m
2x95+1x95	19/2.54	12/5.24	7/5.24		1.6	30.5	850.9	250-3000m
3x16+1x16	7/1.72	6/1.72	1/1.72		1.2	16.3	253.3	250-3500m
3x25+1x25	7/2.15	6/2.15	1/2.15		1.2	19.1	371.9	250-3500m
3x35+1x35	7/2.54	6/2.54	1/2.54		1.4	22.5	519.1	250-3000m
3x50+1x50	7/2.92	6/2.92	1/2.92		1.4	25.7	678.1	250-3000m
3x70+1x70	19/2.15	12/2.15	7/2.15		1.4	29.7	1024.3	250-3000m
2x95+1x95	19/2.54	12/2.54	7/2.54		1.6	34.6	ã€€	ã€€

If you are interested in our products, pls supply more specification, such as, how many cores, nominal section area, conductor material(aluminum or copper) and usuage to me. Then,I will send our best quotation to you.
