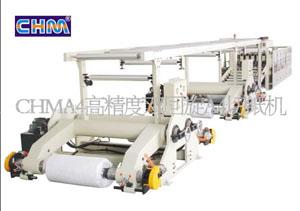

A4 sheeter

This machine is specially cut paper from big roll to A4 size . We can design as customer requirement, such as legal size, letter size...

Main Technical Data of A4
Paper Width: Gross width 900mm, net width 840mm
Cutting numbers: 4 cutting-A4 210mm (width)
Diameter of: Paper roll Max. 1200mm. Min. 600mm
Diameter of: Paper core 6inches or according to the demand of clients
Paper weight: 60-100GSM
Sheet length: 297mm

Ream amount: 500 sheets Max. Height: 65mm
Max. Speed of design: 150m/min
Max. Numbers of cutting: 500/min
Output of the ream: 4.85/min
Production speed: 100-150m/min
Load of cutting: 400GSM

Cutting accuracy: About 0.2mm
Cutting condition: No variation of the speed, no break, cut all the paper at one time and need the eligible paper.
Drive: AC frequency transformer and step-less
Main power supply: 3*380V 50Hz
Voltage: 220V AC 24V DC
Power: 32KW
Compressing air consumption: 300NL/min
Air pressure: 6 bar
Edge cutting: 2*20mm

Optional parts
Auto wrapping partThis machine is specially cut paper from big roll to A4 size like Bielomatic, E. C. H will. We can design as customer requirement, such as legal size, letter size...

Main Technical Data of A4
Paper Width: Gross width 900mm, net width 840mm
Cutting numbers: 4 cutting-A4 210mm (width)
Diameter of: Paper roll Max. 1200mm. Min. 600mm
Diameter of: Paper core 6inches or according to the demand of clients
Paper weight: 60-100GSM
Sheet length: 297mm

Ream amount: 500 sheets Max. Height: 65mm
Max. Speed of design: 150m/min
Max. Numbers of cutting: 500/min
Output of the ream: 4.85/min
Production speed: 100-150m/min
Load of cutting: 400GSM

Cutting accuracy: About 0.2mm
Cutting condition: No variation of the speed, no break, cut all the paper at one time and need the eligible paper.
Drive: AC frequency transformer and step-less
Main power supply: 3*380V 50Hz
Voltage: 220V AC 24V DC
Power: 32KW
Compressing air consumption: 300NL/min
Air pressure: 6 bar
Edge cutting: 2*20mm
