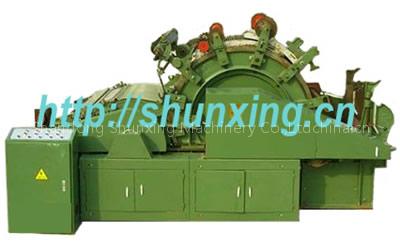

A186D A186F Model Cotton Combing Machine

1.Usage : Betweenthe producing process of operating scrutcher and the following one ofrunning drawing frame ,this machine is applied to processing cotton andchemical fibres ,particularly speaking ,,fluffing ,combing and purgingcotton fibred rolls (or oiled chemical fibred layer) form cotton box(purging, including removing broken cotton seeds, impurities and shortfluff left over from cotton cleaning process), so that curling cottonring in pieces is stretched into monofilament which next is pinned intocotton sliver of certain specification, finally stored in cotton canfor following process of process of drawing frame.

2.Technical Parameters Model: right-handed(standing in front of the machine, facing the doffer) Processing width: 1020mm Applicable cotton Roll: maximum diameter 550mm,width 980mm Cylinder working diameter:1289mm Cylinder speed (seleetive)330rpm(for chemical fibre),360rpm(for cotton) Doffer working diameter: 707mm Doffer speed: 19-35.7rpm Total dratt: 67.3-120.2 Combing Auxiliaries: canting segment of roller, cover board Motor: main motor 3.3kw doffer motor1.1kw;blower motor 0.37kw Area for machine Stand(L*W):3.684*2095mm Machine N*W.:4.5MT Output:15-301gs/hour per set
