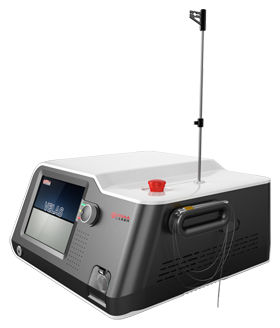

980nm PLDD Laser

30W/60W Surgical Diode Laser Systems

The VELAS series from GIGAA LASER offer you a multiple choice for your different clinic requirements. Surgical applications require a technology that offers equally effective ablation and coagulation options. The VELAS series will offer you the wavelength options of 810nm, 940nm, 980nm and 1470nm, so that you could choose a laser which suits your need best.

The laser systems involve in Urology, EVLT, ENT, Dental, Gynecological, Orthopedic, Plastic surgery and other areas. Each year, we develop at least one new laser system, to bring the new technology and application, safety and health for the patients.

Lipolysis Laser lipolysis is the latest technology in fat reduction, which uses laser to dissolve fat, the cell membranes are broken up during this process. The thin fat lysate is released and it is either resorbed naturally or extracted manually by suction. The compatible operation kits for lipolysis by GIGAA LASER will provide a wide range of applications in body and a total new experience for patients.

Technical Parameters: . Wavelength: 810/940/980/1470nm . Laser output power: 15/30/60W . Output modes: CW, Single or Repeat Pulse . Pulse Duration: 10us-3s/10ms-3s . Transmission System: Fibers of 200um, 400um and 600um with SMA 905 connector(200um only could be used on VELAS15B) . Aiming Beam: Red Diode Laser of 635nm, power less than 5mW .

Control mode: True color touch screen . Vlotage/Current rating: 110V/220VAC, 5A, 50/60Hz or 110VAC/5A, 220VAC/10A, 50/60Hz . Dimensions: 400(W)X385(L)X200(H)mm . Weigth: 12.9Kg/13.4Kg
