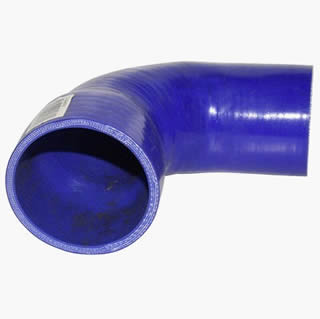

90 Degree Silicone Reducer Hose

90 degree silicone reducer hose is engineered for a transition between two pipes with different sizes. Three types of silicone reducers are provided here: polyester reinforced, Nomex reinforced, and Fluoro lined. Each of them has its own unique properties.

Generally, Nomex is superior to polyester in withstanding higher temperatures, but Fluoro can carry oil & fuel while the other two fail. Polyester reinforced 90��reducer hose with polyester reinforcement is very effective for carrying water, coolant, air. It is often used in cold sides of intercooler, turbo and intake components and piping.

Features: Working temperature: 50�� to +170�� (-58�H to 338�H); UV and ozone resistant; 3 to 5-ply premium polyester fabric reinforced; Silicone hose creates a barrier to loosen medium; Available in black, red, blue. Remark Reducer silicone hose reinforced by polyester is NOT compatible with fuel or oil.

Technical specification Part No Leg Length plies wall Internal Diameter ER19-13 102x102mm (4") 3 4mm 19 to 13mm ER19-16 102x102mm (4") 3 4mm 19 to 16mm ER22-16 102x102mm (4") 3 4mm 22 to 16mm ER22-19 102x102mm (4") 3 4mm 22 to 19mm ER25-19 102x102mm (4") 3 4mm 25 to 19mm ER32-19 102x102mm (4") 3 4mm 32 to 19mm ER32-25 102x102mm (4") 3 4mm 32 to 25mm ER35-22 102x102mm (4") 3 4mm 35 to 22mm ER35-25 102x102mm (4") 3 4mm 35 to 25mm ER35-32 102x102mm (4") 3 4mm 35 to 32mm ER38-25 102x102mm (4") 3 4mm 38 to 25mm ER38-32 102x102mm (4") 3 4mm 38 to 32mm ER38-35 102x102mm (4") 3 4mm 38 to 35mm ER44-38 102x102mm (4") 3 4mm 44 to 38mm ER51-44 102x102mm (4") 4 5mm 51 to 44mm ER54-51 102x102mm (4") 4 5mm 54 to 51mm ER57-54 102x102mm (4") 4 5mm 57 to 54mm ER60-51 102x102mm (4") 4 5mm 60 to 51mm ER63-51 102x102mm (4") 4 5mm 63 to 51mm ER63-54 102x102mm (4") 4 5mm 63 to 54mm ER63-57 102x102mm (4") 4 5mm 63 to 54mm ER70-51 125x125mm (5") 4 5mm 70 to 51mm ER70-60 125x125mm (5") 4 5mm 70 to 60mm ER70-63 125x125mm (5") 4 5mm 70 to 63mm ER76-51 125x125mm (5") 4 5mm 76 to 51mm ER76-60 125x125mm (5") 4 5mm 76 to 60mm ER76-63 125x125mm (5") 4 5mm 76 to 63mm ER76-70 125x125mm (5") 4 5mm 76 to 70mm ER89-76 125x125mm (5") 4 5mm 89 to 76mm ER102-76 125x125mm (5") 5 6mm 102 to 76mm ER102-89 125x125mm (5") 5 6mm 102 to 89mm Nomex reinforced (High Temp) Nomex reinforced reducer hose is notable for its higher working temperature high pressure.

Compared to polyester reinforced conducer, its operating temperature can reach +220�� (+428�H). 90��silicone reducer is frequently used in hot sides of turbo boost hoses and intercooler where other hoses fail.

Features: Working temperature: -60�� to 220�� (-76�H to +428�H); 3 - 5-ply Nomex reinforced configuration; UV and ozone resistant; High Flame-resistant; Silicone hose creates a barrier to loosen medium; Only available in black. Remark: Silicone conducer reinforced by Nomex is NOT compatible with oils & fuel.

Technical specification: Part No Leg Length plies wall Internal Diameter Color ER38-32 HT 102x102mm (4") 3 4mm 38 to 32mm Black ER60-51 HT 102x102mm (4") 4 5mm 60 to 51mm Black ER63-51 HT 102x102mm (4") 4 5mm 63 to 51mm Black ER70-51 HT 125x125mm (5") 4 5mm 70 to 51mm Black ER76-51 HT 125x125mm (5") 4 5mm 76 to 51mm Black ER76-60 HT 125x125mm (5") 4 5mm 76 to 60mm Black ER76-63 HT 125x125mm (5") 4 5mm 76 to 63mm Black ER102-76 HT 125x125mm (5") 5 6mm 102 to 76mm Black Fluoro lined for oils & fuel Fluoro lined silicone reducer is especially designed for carrying oils & fuel.

Compared with the other silicone hoses, the distinct difference is that the Fluoro liner prevents oil seepage through the hose wall. It is often used in turbocharger and intercooler hoses which meet Euro 3 and 4 emission levels.

Features: Recommended temperature: �C60 to +225��C (-76�H to +437�H); Reinforced by 3 to 4-ply premium polyester fabric; Nomex reinforced can be fabricated by special order. Available in black, red, blue; UV and ozone resistant; Excellent flexibility.

Technical specification: Part No Leg Length plies wall Internal Diameter ER19-13 FL 102x102mm (4") 3 4mm 19 to 13mm ER19-16 FL 102x102mm (4") 3 4mm 19 to 16mm ER32-25 FL 102x102mm (4") 3 4mm 32 to 25mm ER38-32 FL 102x102mm (4") 3 4mm 38 to 32mm ER60-51 FL 102x102mm (4") 4 5mm 60 to 51mm ER63-51 FL 102x102mm (4") 4 5mm 63 to 51mm ER76-63 FL 125x125mm (5") 4 5mm 76 to 63mm
