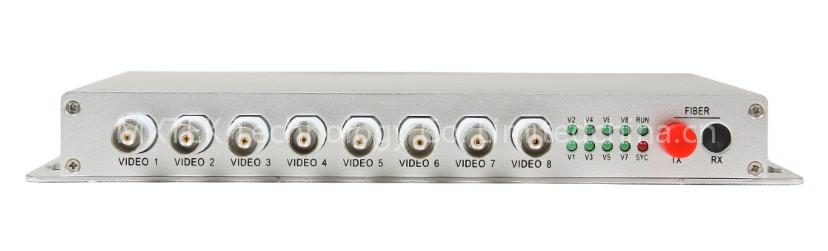

8 channels Video Optical Multiplexer

Item No.:OV-8V

Description:

OV-8V fiber-optic video transceivers can simultaneously transmit 8 channels of 8-bit digitally encoded video / return or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Dry contact over one multimode or single-mode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .

Products Features:

• Industrial-level design with SMT techniques, non-condensing

• Full digital transmission in fiber, multi-service flexible configuration on the same platform

• Video AGC can supply stronger adaptability and stability for the pictures.

• Based on large scale integrated circuit

• Transmission in single-fiber, dual-fiber is optional

• Vedio and data ports design for 3 level lightning protection

• Fully compatible with PAL/NTSC/SECAM

• Automatic Recover overload

• Low consumption, plug-and-play of unadjustable trial installment

• Non-interference from simulate FM,PM,AM changeable

• Stand-alone type or card-type installed in 19’’ 2U or 4U rack-mount chassis

Technology parameter:

Fiber port

Port: FC(SC,ST etc)

Working wavelength: 1310nm/1550nm

Transmitting power >-10dBm

Receiving Sensitivity <-23dBm

Minimumn link loss: 28dB

　

Video

Signal type : PAL/NTSC/SECAM4

Nominal input lever : 0.5~2Vpp

Nominal input/output impedance : 75ohm

Bandwidth per channel : 0-8MHz

Quantization: 8bit

DG(Differential Gain) < 1%

Differential phase(DP) < 1°

Group delay < 50 ns

weighted signal-to-noise ratio >67 dB

E1 port

Connector type: 75Ω/BNC(Q9)

code pattern: HDB3

Bit rate: 2.048Mbit/s±50ppm

Jitter: ITU-T G.823

Physics parameter

Connector : RS232/RS485/RS422/ Manchester code

Working mode: Full/Half Duplex

Data rate : DC-100Kbps(NRZ)

Bit error rate <10-9

Operating environment

Power supply : AC176V~264V / 50Hz DC-36~72V

working temperature : 0-60ºC

Relative humidity < 95%

Power Consumption <5W

Dimension : 240 * 120* 28mm
