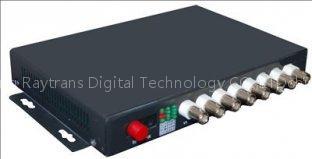

8-channel optic video multiplexer
Specifications
- Origin
- Bejing,China
- Price Term
- FOB
8-channel optic video multiplexer is a Diodes product. Key specs — Origin: Bejing,China; Price Term: FOB.
Product Description
8-channel optic video multiplexer is a miniaturized fiber transmission equipment of video, data and other service signals. It introduces advanced all-digital uncompressed technique and was tailor-made for surveillance & control market. It is able to transfer 8-channel unidirectional video, 8-channel data, 8-channel bidirectional audio. The hot swappable design makes the installation very easy and on-site adjustment interfaces based on standard core circuits and optical modules are compliant with all international criteria.
1.Feature of 8-channel optic video multiplexer
SNMP network management function which can realize real time monitoring.
Video quality of broadcast-level.
Audio quality of CD-level.
Compatibilityof video formats like PAL, NTSC, SECAM etc.
SMT(Surface Mount Technology) Lighting and surge multiple protection
Lossless video regeneration and repetition trucking，free from electro-magnetic or radio frequency interference.
Transparent data coding and is compatible with the products of major camera manufacturers.
Advanced self-adaptive technique, no on-site electrical or optical adjustments are necessary.
Miniaturized and compact structure, very easy to install.
2. Specification of 8-channel optic video multiplexer
2.1 Optical interface
Physical connector | FC/SC | Single or Multi mode | |
Receiver’s rate | 155bps/84Mbps | Receiver’s wavelength | 1310nm/1550nm |
Transmitter’s rate | 84Mbps/155Gbps | Transmitter’s wavelength | 1550nm/1310nm |
Consumption | -15~-8dBm | Receiver’s sensitivity | Better than -32dBm |
Transmitting range | 20km or further(with optical module) | ||
2.2Video interface
Physical connector | BNC | Luma Nonlinearity | <3% |
Video sampling bit width | 8bit | Video bandwidth | 0Hz~6.5MHz |
differential phase (DP) | <0.7o | differential gain (DG) | <0.7% |
Loaded overvoltage | 1.5VP-P (Typical value) | Input/output voltage | 1VP-P(Typical value) |
Input/output impedance | 75Ω(Unbalance) | Video frequency SNR | ≥70dB(weighted) |
2.3 High-fidelity interface
Physical connector | RJ45 | Audio sampling bit width | 16bit |
Input/output impedance | ADC:100KΩ/DAC:10KΩ | Input/output voltage | 1.5VP-P (typical value) |
Audio sampling frequency | 32KHz | Audio frequency SNR | ≥90dB |
Audio bandwidth | 20Hz~20KHz | THD | <1% |
2.4 Data interface
Physical connector |
