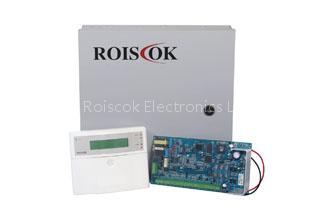

8 Zone Expandable Control Panel is a Alarm Systems product. Key specs — Origin: Shenzhen, China.
Product Description
The function is perfect, the programming is convenient, the installation is easy, and the usage is safe. It supports programming any address information at will. It could greatly reduce the working time of installation and programming.
RP248CN adopts the latest technology, LSI Application, SMT jointing technology, and digital program design to ensure the reliability and stability of the system. Its appearance is compact and elegant with reasonable layout. The distance is up to 1500M between control panel and module.
LCD Keypads (RP248KCL) 1. Display of Two Lines and 32 Characters 2. 3 Keypad Emergency Zones: Panic[1]+[2], Fire[4]+[5], Special Emergency[7]+[8] 3. Menu Indicates the User Functions and the Installer Programing 4. Key-press with Audible Feedback 5. System Condition Display 6. Trouble Display 7.
LED Indication: Alarm, Power, Armed, Disarmed, Bypass, Ready, Tamper 8. User Information is Displayed on Screen (except for password) 9. LCD Backlight 10. Tamper is Supervised 11. Alarm By Duress Code 12. Easy to Use Hot-keys for Simple Bypassing and Not-ready Zones Display 13. One Button for Quick Arming 14. One Button for Quick Perimeter Arming 15.
Alarm Memory Display 16. System Trouble Display 17. Up to 16 LCD Keypads can be Connected
Mainboard(RP248MB) 1. Zone Terminal Resistor (2.2K) 2. 8 Zones on Mainboard 3. Expandable up to 72 Programmable Zones 4. Special Zones: Zone-5 is Fire Zone, Zone-6 is Tamper Zone 5. Can be Parted to 8 Divisions 6. 11 types of Programmable Zones, 7 Types of Voice Formats 7. Zone Terminal: NC, NO
