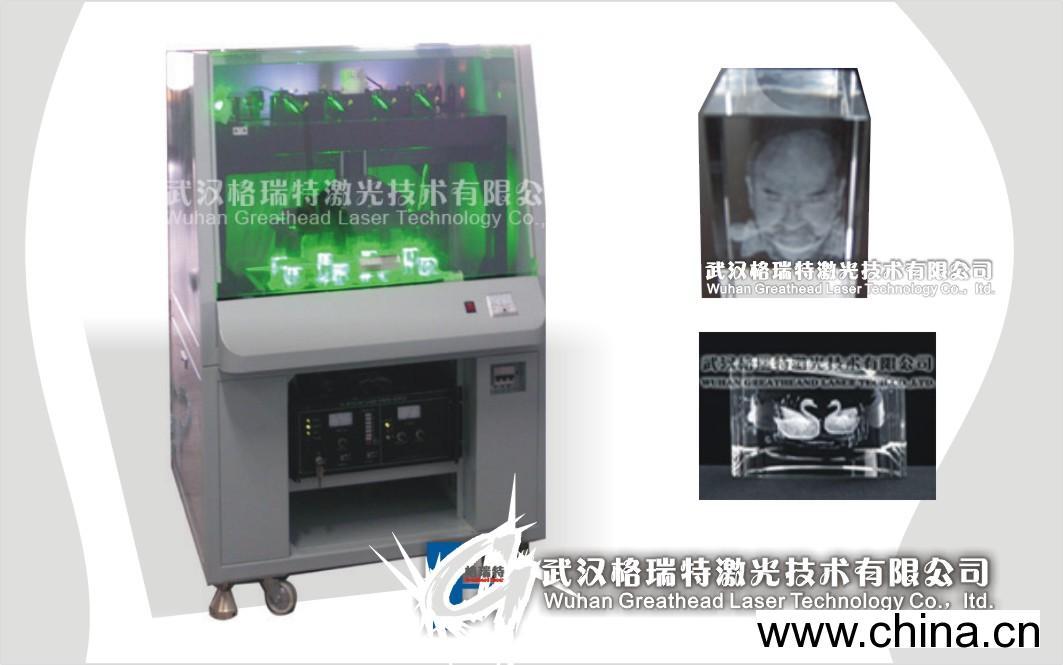

8 Head Sub-Surface Engraving Machine

Model No.:GH-318(CE:GH8083) Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:Our GH-318 laser sub-surface engraving machine integrates optical, mechanical, and electronic technology. The computer controlled high-precision servo-motor control system results in an extremely high level of control over the image.

Thisunit can engrave flawless three dimensional patterns inside transparent crystal GH-318 has 8 laser heads, for a high production capacity. It can engrave 8 crystalor glass products at the same time, and conforms to EU and CE standards.

The clearand precise images possible with this machine are perfect for home decorations.Characteristics:1) Full featured software can make various three-dimensional, plane characters, andimages2) High degree of automation, high reliability, can work continuously for a longtime3) Non-touch style processing ensures that the surface of the crystalline materialremains bright and clean4) The pattern of engraving is exquisite and crystal-clear with a strong tri-dimensionalfeeling.Technical parameters:1) Medium of laser: Nd: YAG2) Wave length of laser: 532nm3) Laser frequency: 100Hz4) Engraving speed: 3,000 - 6,000 dots/min5) Engraving speed: 280 x 280 x 80mm6) Scan laser head number: 87) Controlling method: servo
