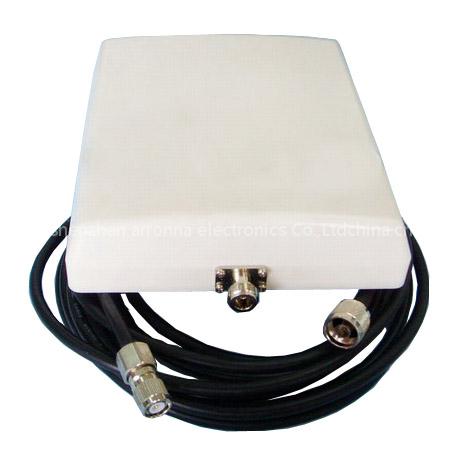

800-2500MHz Long Range Panel Antenna 7/10dbi

ARW-824-2500-10, Wall mount Antenna is specially designed for GSM, CDMA dual frequency cellular mobile communication and WLAN wireless network indoor bestrew system.

It features wide bendwidth, shARe with GSM, CDMA and WLAN system.Product NARe Wall Mount Antenna Electrical Specifications Model ARW-824-2500-10 Frequency Range –MHz 824-960/1710-2500 Gain-dBi 7 / 10 Horizontal Bear width -° 70/60 Vertical Bear width -° 55/45 VSWR ≤1.5 Input Impedance -Ω 50 Polarization Vertical Maximum Power -W 50 Connector N Female or Customized Mechanical Specifications Dimensions-mm 210 x 180 x 44 Weight-g 600 Radom Material Anti-Ultraviolet Radiation ABS Color White Mounting Way Mounting on the wall
