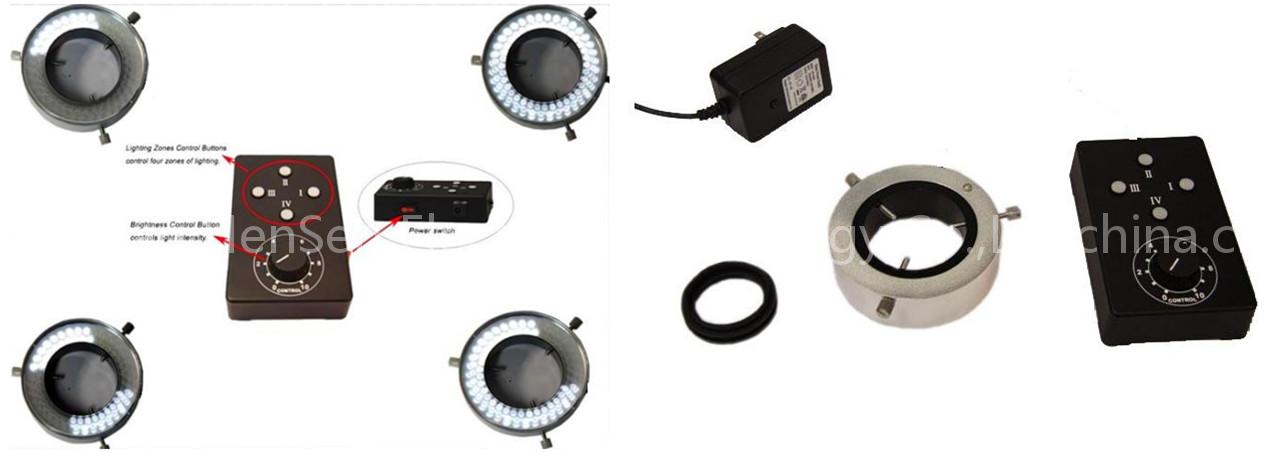

72 LED Ring Light

1. Uniformity Light, Non-flicker & Shadow

2. Intensity Adjustment, with Four-zone Lighting Control Separately

Applications:

Stereo microscopes and machine vision systems to inspection or imaging as illumination.

Input Power: DC12V 600mA

Output Power: 7.2W

Input Voltage: Universal 100-240V AC

LED Color Temperature: ± 6000K

LED Luminance: >12000mcd

LED Angle: 18° (Consistent)

LED Lifetime: 100, 000 hrs

Working Distance: 95-115mm

Condensation: 30mm

LED Color: White(Optional Other Colors)

Features:

Reliability and Durability

Low Power Consumption, Super Brightness

Metal Shell, ESD and Insulativity

Reasonable Design, Uniformity Light, Non-flicker & Shadow

Intensity Adjustment, Good Variable Control Permit Gradual Increase in Brightness with Four-zone Lighting Control Separately

Mounting Diameter: 58mm, Outer Diameter: 98mm

Standard Configuration:

72LED Lamp, Light Control Box, DC12V Power Supply, Adaptor, Soft-filter and Neutral Package.

Options:

1. Polarizer Suit: Φ 26 or Φ 48 Polarizer (Alternative) and Φ 95 Analyzer

Effects: Reduce glare as to the light is soft for observe; More uniform light to generate clearer image.

2. Red filter: Φ 95, suit for inspect the green plant sample or with green background

3. Severe Soft-filter Attachment: Φ 95, inspection of sample with heavy reflecting lights

Power Cable Options: UK, USA, Europe, Australia or Other System
