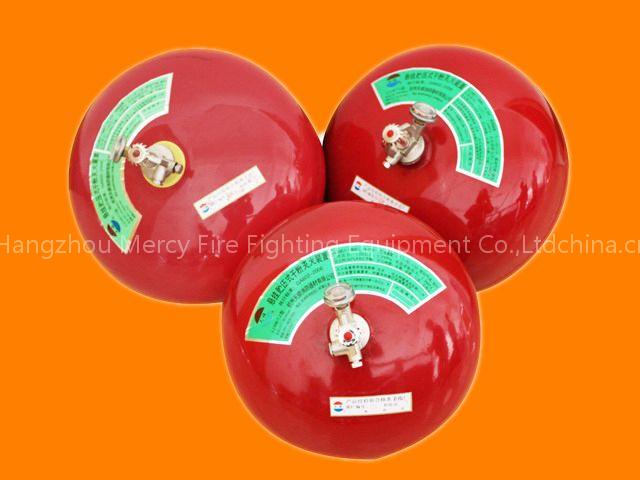

6kg hanging fire extinguisher

Name: 6kg Mounted Dry Power Extinguisher

Sort: Hanging Dry Powder Fire Extinguisher

Description:

I. Main Performance ParameterA temperature-sensitive glass ball is installed on the nozzle of the spray header of mounted stored pressure dry power fire-fighting equipment, and in normal conditions, the upper end of the glass ball bears against the sealing strip on the nozzle.

When there’s a fire, the temperature goes up, liquid in the glass ball automatically breaks because of expansion by heat, the sealing strip automatically falls off and dry power agent in the fire-fighting equipment with nitrogen’s drive sprays from the nozzle to extinguish fire.

This series of fire-fighting equipments can extinguish fire quickly and can be used safely, and toxicity of the extinguishing medium is low. II.

Main Technical ParameterThe company designs and manufactures mounted stored pressure dry power fire-fighting equipment of FZXA6/1.2 type, FZXA8/1.2 type and FZXA10/1.2 type in accordance with GA602-2006 standard of “Dry Power Fire-fighting Equipment”.

Its main performance parameters are shown in the following table: Type Filling Weight Working Pressure Fire-fighting Level Minimum Effective Discharge Time Rate of Residual Extinguishing Medium Protection Radius Use Temperature Bottle Size

FZXA6/1.2 6±0.3kg 1.2MPa 1A 21B ≤10 s ≤5% ≥0.94 -10~+50℃ φ270×320
