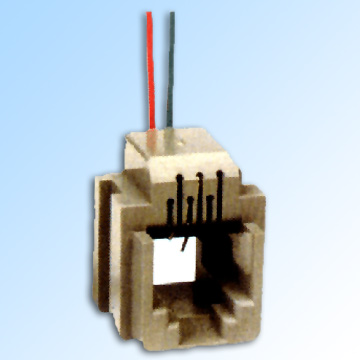

616E, 616W, 623K Wired Jacks

Product Name: 616E, 616W, 623K Wired Jacks Place of Origin: China For telephone or other communication equipments Electrical 1) Current rating: 1.5AMPS 2) Voltage rating: 125VAC 3) Insulation resistance: 100megohms mini 4) Withstand voltage: AC 1,000V RMS 50Hz or 60Hz 1 min 5) Contact resistance: 20millmhos mini Mechanical 1) Mating force: 2 wire lead 350g, 4 wire lead 500g, 6 wire lead 750g, 8 wire lead 900g 2) Retention strength: 7.7kg between jack and plug 3) Crimp tensile strength: 2.27kg 4) Durability: 200mating cycles mini Material 1) Housing: standard abs resin (ul94v-0) 2) Contact wire: 0.46mm diameter phosphor bronze optional gold plating over nickel 3) Gold plating: 3u inch, 6u inch, 15u inch, 30u inch, 50u inch 4) Wire styles: UL 1061, 26 AWG strands Price Term: FOB Ningbo
