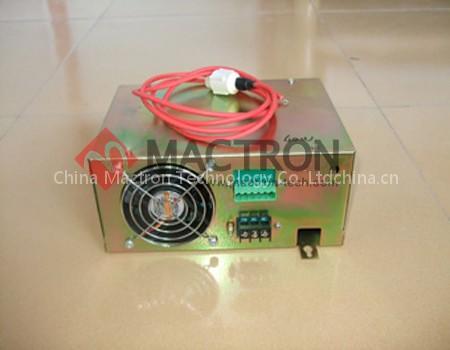

60W Co2 Laser Power Supply
Specifications
- Origin
- china
- Price Term
- FOB
60W Co2 Laser Power Supply is a Other Laser Equipment product. Key specs — Origin: china; Price Term: FOB.
Product Description
Input | Input Voltage | AC220V or AC110Vto be specified when placing order | |
AC frequency | 47440HZ | ||
Cold Surge Current | ≤60A(AC220V Input) | ≤30A(AC110 Input) | |
Current Leakage | ≤0.7mA(AC220V Input | ≤0.4mA(AC110V Input) | |
Output | Maximum Input Voltage | DC 35KV | |
Maximum Output Current | DC 23mA | ||
Efficiency | ≥90full load | ||
Mean Time Between Failure (MTBF) | ≥10000H | ||
Response Speed | ≤1ms(from the switch Signal is given to the output current up to 90% of the setting current | ||
Control Interface | TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification) | ||
Withstand Voltage | Input-Output, Input-Shell: AC1500V 10mA 60S; Output negative is connected with machine shell. | ||
Protection | can work in open-circuit condition for a short timeRequire a good protective earthing and avoid arc between the positive and the machine shell | ||
Environment | Operating Temperature-10~40,Relative Humidity (RH)≤90 | ||
Cooling Way | Force-Air Cooling (FAC) | ||
Dimension | L×W×H=207*144*97(mm) | ||
