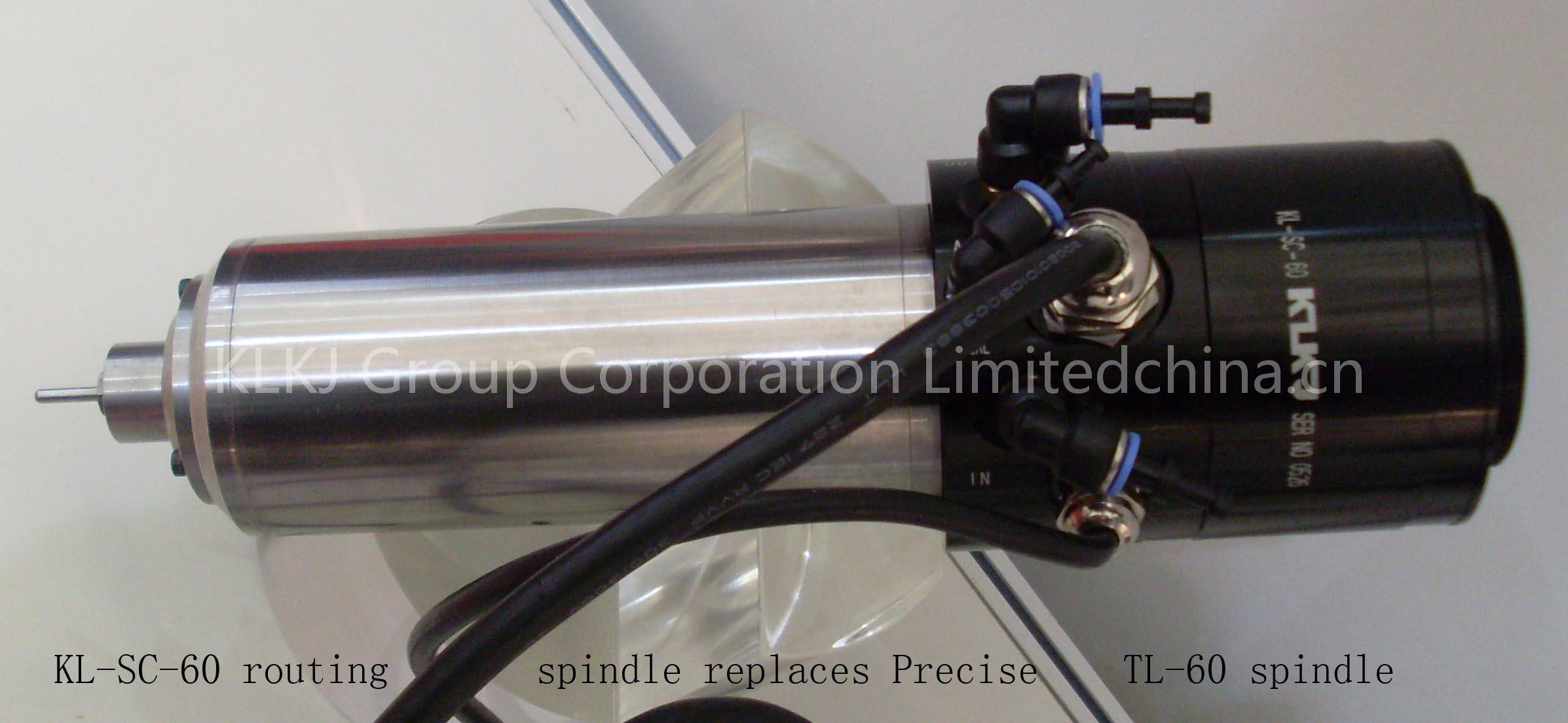

60K rpm PCB routing spindle

60,000rpm speed ball bearing spindle for PCB routing machine,high torque to meet routing machine to processing multi-PCB requirement,save cost. It can replace Precise TL-60.

Main specification:

1)Speed range: 15,000rpm~60,000rpm;

2)Air supply pressure:5 kg/cm2;

3)Cooling water flow:1.60 1/min;

4) Dynamic runout: ≤12µm at 60,000rpm ;

5)Collet torque: ≥ 1000g at 60,000rpm;

6)Output power: 1.2 KW at 60,000rpm;

7) Motor voltage: 200V rms at 60000rpm;

8)Body size: 2.437inch (61.9mm)
