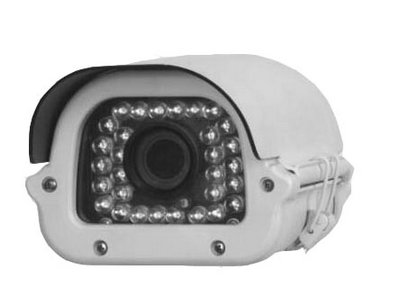

5 Megapixel IP Camera

Main Features

1 Up to 5 Megapixel Image resolution

2 Progressive scan CMOS

3 H.264/MPEG-4 video compression with high compression ratio

4 Dual Streams

5 Up to 32 GB SD/SDHC card local storage

6 Auto switch ICR Filter

7 Two-way audio

8 PoE and WiFi optional

Specification

Camera Image Sensor 1/2.5" Progressive Scan CMOS

Min. Illumination Color: 0.6Lux F1.2

B W: 0.08Lux F1.2

Electronic Shutter 1/25s ~1/20,000s

Lens Mount C/CS mount

Auto Iris DC Drive

Day Night IR cut filter with auto switch

Media Compression Standard Video Compression H.264/ MPEG-4/MJPEG

Audio Compression OggVorbis

Bit rate 32 Kbps~16Mbps

Image Max. Image Resolution 2560x1920

Frame Rate 50Hz: 6fps(2560x1920), 12.5fps(2048x1536), 25fps(1920x1080), 25fps(1600x1200), 25fps(1280x720)

60Hz:7.5fps(2560x1920), 15fps(2048x1536), 30fps(1920x1080) 30fps(1600x1200), 30fps(1280x720)

Image Settings Saturation, Brightness, Contrast adjustable through client software or web browser

Network Protocol Protocols TCP/IP,,DHCP,DNS,DDNS,RTP/RTSP, PPPoE, SMTP, NTP(SNMP, ,FTP)

Interface Ethernet Interface 1 RJ45 10M 100M self-adaptive

RS485 Interface 1 RS-485 interface

Intelligent Alarm Motion Detection, Video Loss, Network Disconnect, IP conflict, Storage exception

Alarm Input 1 channel

Alarm Output 1 channel

Video Output 1Vp-p Composite Output (75 Ohm/BNC)

Audio Input 1 channel microphone input

Audio Output 1 channel audio interface (Line level, 600Ohm)

Local Storage Support SD/SDHC

Basics Reset button, Anti-flicker, Dual Stream, Heartbeat, Password Protection

General Operating Condition -10 °~60 °, Humidity 90% or less(non-condensing)

Power Supply DC12V(±10%) PoE (AC24V optional)

Power Consumption 5W MAX(10W MAX with ICR Working)

Options WiFi 802.11b/g is Optional

PoE Power Over Ethernet is Optional
