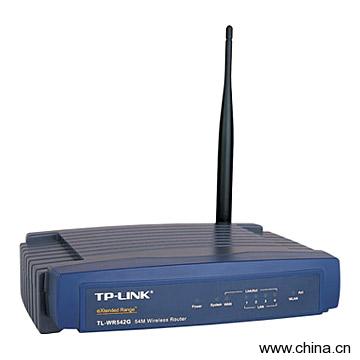

54M Wireless LAN Router

Model No.:TL-WR542G Product

Origin:China Brand

Name:TP-LINK

Price Terms:FOB

Payment Terms:T/T in advance

Certification: Description

Product Name: 54M Wireless LAN Router

Model Number: TL-WR542G

Place of Origin: China

Features: 1) Complies with IEEE802.11g, IEEE802.11b, IEEE802.3, IEEE802.3u standards2) 1 10/100M auto-negotiation WAN RJ45 port, 4 10/100M auto-negotiation LAN RJ45 ports3) Supports auto MDI/MDIX4) Adopts 2x to 3x extended range5) Shares data and Internet access for users, supporting PPPoE, Dynamic IP, Static IP, L2TP, Big Pond Cable Internet access6) Supports 54/48/36/24/18/12/9/6/11/5.5/3/2/1Mbps wireless LAN data transferrates7) Provides 64/128/152-bit WEP encryption security8) Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AESencryption security9) Provides wireless LAN ACL (Access Control List)10) Provides 802.1x authentication for WAN port 11) Built-in NAT and DHCP server supporting static IP address distributing12) Supports virtual server, special application, and DMZ host13) Built-in firewall supporting IP address filtering, domain name filtering, andMAC address filtering14) Supports connecting/disconnecting Internet on a specified time of day15) Supports access control base on time of day, parents and network administrators can establish restricted access policies for children or staffs16) Supports TCP/IP, PPPoE, DHCP, ICMP, NAT17) Supports UPnP, Dynamic DNS, static routing, VPN pass-through18) Supports flow statistics19) Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter20) Ignores ping packets from WAN or LAN ports21) Supports firmware upgrade22) Supports remote and web management

Specifications: 1) Protocols and standards: IEEE 802.11g; IEEE 802.11b; IEEE 802.3; IEEE 802.3u;IEEE 802.3x; IEEE 802.1X; CSMA/CA; CSMA/CD; TCP/IP; DHCP; ICMP; NAT; PPPoE2) Frequency band: 2.4 ~ 2.4835GHz3) Data transfer rates: a) 11g: 54/48/36/24/18/12/9/6M (auto-sense) b) 11b: 11/5.5/3/2/1M (auto-sense)4) Extend frequency: DSSS5) Modulation: BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)6) Transmission distance: indoor up to 200m, outdoor up to 830m (adop in an environment)7) RF power: 17d Bm (typical)8) Antenna: 3d Bi dipole antenna9) Network media: a) 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 STP(maximum 100m)b) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 STP(maximum 100m)10) Environment: a) Operating temperature: 0 ~ 40°C (32 ~ 104°F)b) Storage temperature: -40 ~ 70°C (-40 ~ 158°F)c) Operating humidity: 10% ~ 90% non-condensingd) Storage humidity: 5% ~ 95% non-condensing11)

Power: a) AC power adapter: 9V ~ 0.8A b) Consumption: 6.8W (max.)
