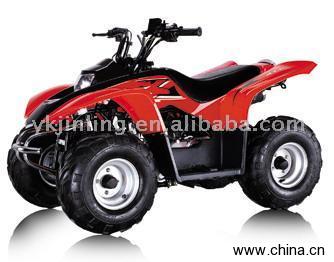

50cc Kids' ATV is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:ATV50C Product Origin:China Brand Name:Jinling Price Terms:FOB, CIF, CFR Payment Terms:T/T, L/C at sight Certification:CE Description:1. Engine type: 50cc/70cc/90cc/110cc, 4-storke2. Bore and stroke: 39 x 41.4/47 x 41.4/47 x 49.5/52.4 x 49.53. Compression rating: 8.8:14.
Max. torque: 4.2N.m/5,000rpm, 4.2N.m/5,000rpm, 5.2N.m/5,000rpm, 5.5N.m/5,000rpm5. Max. power: 3.0kW/8,500rpm, 3.0kW/7,500rpm, 3.3kW/7,500rpm, 3.6kW/7,500rpm 6. Ignition type: CDI7. Transmission: automatic, chain8. Brake (front/rear): drum/disc 9. Starting system: electric start10. Battery spec: 12V, 4A 11. Front suspension details: double A x swing arm 12.
Rear suspension details: mono shock swing arm13. Front tire spec: 16 x 8-714. Rear tires spec: 16 x 8-715. Vehicle dimensions: 130 x 70 x 80cm16. Wheel base: 880mm17. Seat height from ground: 60cm18. Ground clearance: 100mm19. Load capacity: 75kg20.
Fuel tank capacity: 3.2LOuter packing:Carton dimensions: 131 x 72 x 64cmN.W.: 73kgG.W.: 95kgConveyance:Qty/20' FCL: 38pcsQty/40' FCL: 76pcsQty/40' HQ: 108pcs
