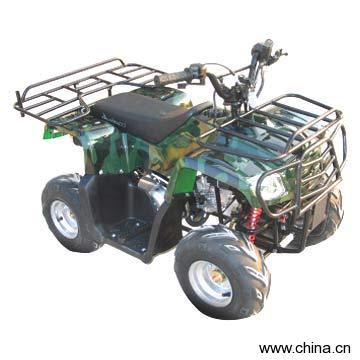

50cc ATV (EPA) is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:F49-5ATV Product Origin:China Brand Name:FYM Price Terms:FOB Payment Terms: Certification: Description:Product Name: 50cc ATV (EPA)Model Number: F49-5ATVPlace of Origin: ChinaSpecifications: 1) Packing size (L x H): 1,145 x 750 x 6902) Size (L x W): 1,200 x 740 x 850mm3) Wheelbase (mm): 5404) Wheel distance (mm): 7605) Min. ground clearance (mm): 1006) Seat height (mm): 6607) Net weight (kg): 838) Gross weight (kg): 1009) Max. speed (km/h): 3010) Brake mode (RR.): RR/disk brake11) Tire size (FR/RR.): 145/70-612) Engine type: 1-cylinder, horizontal, 4-stroke wind cooling13) Clutch mode: wet multiple plate, auto clutch14) Bore x stroke: 39 x 41.415) Displacement: 49cc16) Compression ratio: 9.0:117) Max. power (kW/r/min): 2.0kW/7,500+375r/min18) Max. torque (N.W/r/min): 2.5N.m/5,000+250r/min19) Idling: 1,500 + 100r/min20) Transmission type: chain driving21) Cooling method: air-cooling22) Start mode: electric start23) Ignition mode: CDIConveyance: Qty/20' FCL: 48pcs Qty/40' FCL: 102pcs Qty/40' HQ: 102pcs
