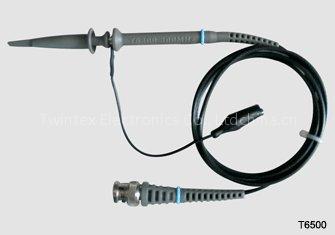

500MHz Oscilloscope Probe

Features - Attenuation ratio: 1X and 10X optional - Compact and ergonomic design - Intergral injection molding, gives more flexibility and makes oscilloscope apply more testing situations Applications - Compatible with international digital and analog oscilloscopes - Measurment in intermediate and low frequency signals Order information - Operaton manual - Adjsutting tools: adjusts compensation capacitance to assure the probe match with oscilloscope - Conttractive-type acuminate hook - 12cm earth wire with alligator clip - 4pairs of colored cble markers - Locating sleeve: adopted to IC testing Specifications Attenuation: 1x: 10x Input resistance: 1MΩ: 10MΩ Input capacitance: 1 x: 85pF-115pF 10 x: 13.5pF-17.5pF Compensation scope: 15pF-35pF System bandwidth: 1 x: DC-10MHz 10 x: DC-500MHz Input voltage: 1 x:
